Control cable for welding guns

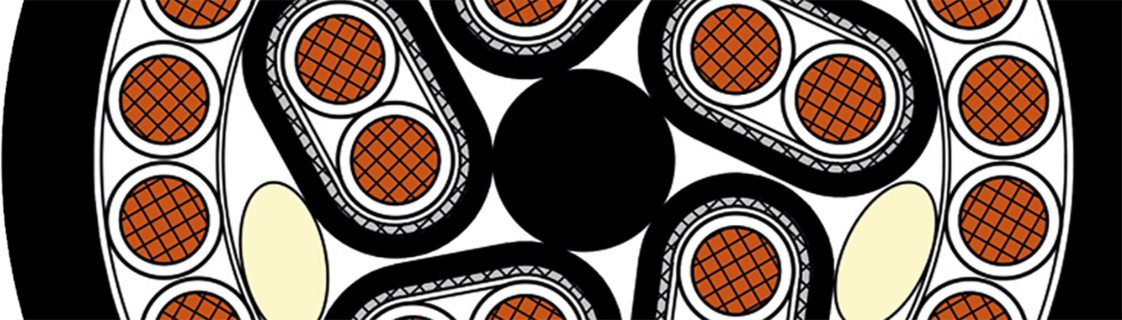

5 x (2 x 0,75 mm²)D + 22 x 0,75 mm²
Construction
| Conductor | bare copper strands acc. to IEC 60228 |
|---|---|
| Insulation | TPE |
| Colour code | white cores with consecutive numbers acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface |
| Control cable for welding guns | black (RAL 9005) |
bare copper strands acc. to IEC 60228
TPE
white cores with consecutive numbers acc. to EN 50334 + VDE 0293-334
and a green-yellow earth wire
PUR, TMPU acc. to EN 50363-10-2 +
VDE 0207-363-10-2 with mat surface
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | core/core 2000 V (AC) core/screen 2000 V (AC) |
| Temperature range | flexible application: -40/+80 °C |
| Min. bending radius | recommended: 10 x d |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
core/core 2000 V (AC)
core/screen 2000 V (AC)
flexible application:
-40/+80 °C
recommended: 10 x d
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø | |
|---|---|---|---|
| L0796-9081 | 5 x (2 x 0,75 mm²) D + 22 x 0,75 mm² | 16,0 mm | Send inquiry |
Other dimensions and colours are possible on request.
