SAB Kabel

Control cables

23 x 1,0 + (2 x 1,0) D or 16 x 1,0 + (2 x 1,0) D

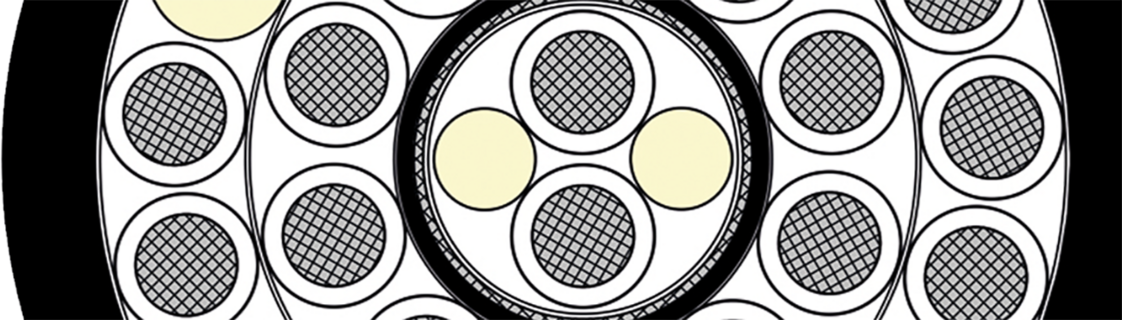

Construction

Conductor

tinned copper strands acc. to IEC 60228

Insulation

TPE

Colour code

white cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Inner sheath

TPE

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

tinned copper strands acc. to IEC 60228

Insulation

TPE

Colour code

white cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Inner sheath

TPE

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 600 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 10 x d

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 600 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 10 x d

Dimensions

item no. dimension outer-ø
0764-906523 x 1,0 + (2 x 1,0) D13,2 Send inquiry
0764-907916 x 1,0 + (2 x 1,0) D13,4 Send inquiry
item no.
dimension
outer-ø
0764-9065
23 x 1,0 + (2 x 1,0) D
13,2
0764-9079
16 x 1,0 + (2 x 1,0) D
13,4

Other dimensions and colours are possible on request.
