Control cables

5 x 1,0mm² + 4 x (2 x 0,5mm²) D

Application

Robot cable for torsional stress up to ±180°/0.5 m. The minimum bending radius of this robot control cable is 10 x d (recommended). The cable can be used for a temperature range of (flexible application): -40°C to +90 °C. All robot cables from SAB are free of paint wetting-wetting impairment substances (LABS non-critical).

Outstanding features

  • Torsion angle up to ±180°/0,5 m
  • PWIS uncritical

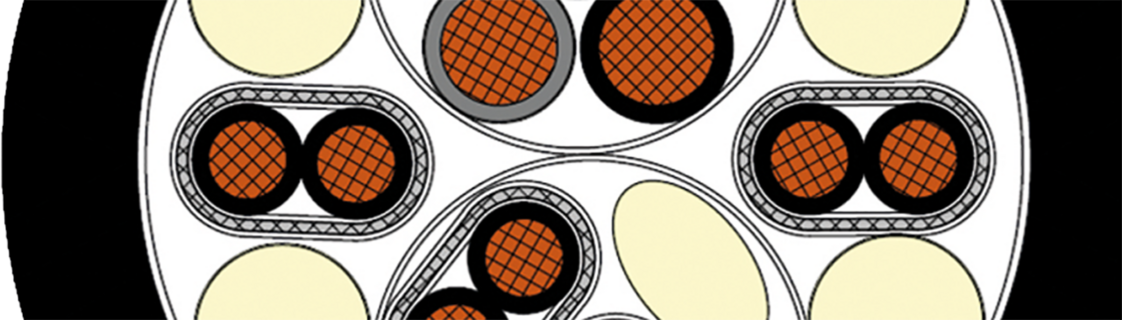

Construction

Conductor

bare copper strands acc. to IEC 60228

Insulation

TPE

Colour code

coloured acc. to specification

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228

Insulation

TPE

Colour code

coloured acc. to specification

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical Data

Min. bending radius

recommended: 10 x d

Torsion angle

up to ±180°/0,5 m

Temperature range

flexible application: -40/+90 °C

PWIS uncritical

all our robot cables are free from paint-wetting impairment substances

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

recommended: 10 x d

Torsion angle

up to ±180°/0,5 m

Temperature range

flexible application: -40/+90 °C

PWIS uncritical

all our robot cables are free from paint-wetting impairment substances

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Approx. outer-ø
0764-906523 x 1,0 mm² + (2 x 1,0 mm²) D13,2 mm Send inquiry
0764-907916 x 1,0 mm² + (2 x 1,0 mm²) D13,4 mm Send inquiry
item no.
Dimension
Approx. outer-ø
0764-9065
23 x 1,0 mm² + (2 x 1,0 mm²) D
13,2 mm
0764-9079
16 x 1,0 mm² + (2 x 1,0 mm²) D
13,4 mm

Other dimensions and colours are possible on request.
