RT Hybrid Ethernet cable CAT 6

Hybrid Ethernet Cable CAT 6 for Robotic Applications 4 x 2 x AWG 26 + 4 x 1,0mm²

RT hybrid Ethernet cables CAT 6

RT hybrid Ethernet cables CAT 6

Application

Bus hybrid cables from SAB combine power supply and data transmission in one cable. These cables are used, for example, in the cable-hose assembly of the robots and, due to their construction, they save an enormous space and minimize the wiring costs. The connection to the control cabinet is thus reduced and no additional plugs and sockets are required. Depending on the application, SAB hybrid cables can be designed to meet almost any technical requirement. As a manufacturer of special & hybrid cables, we develop new electrical cables with hybrid cable constructions together with our customers.

Additional information

Teach Pendant cables on request!

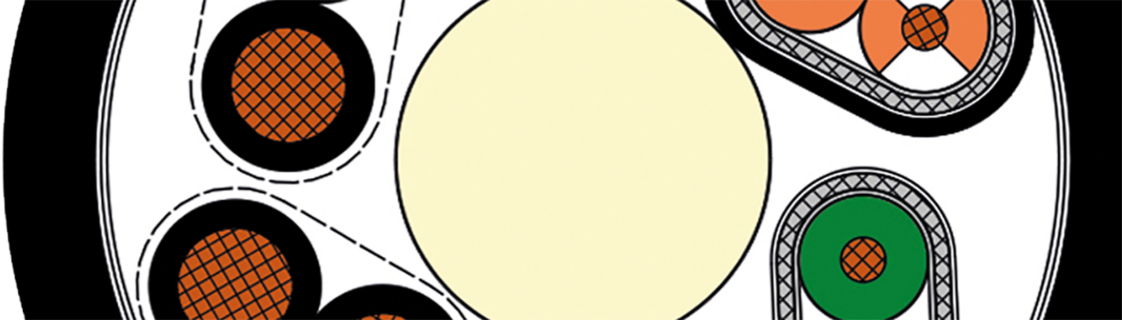

Construction

Conductor

bare copper strands acc. to IEC 60228

Insulation

4 x 2 x AWG 26: FEP

4 x 1,0 mm²: TPE

Colour code

4 x 2 x AWG 26: white-blue/blue,

white-orange/orange,

white-green/green,

white-brown/brown

4 x 1,0 mm²: black cores

with consecutive numbers

acc. to EN 50334

+ VDE 0293-334

Sheath materia

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228

Insulation

4 x 2 x AWG 26: FEP

4 x 1,0 mm²: TPE

Colour code

4 x 2 x AWG 26: white-blue/blue,

white-orange/orange,

white-green/green,

white-brown/brown

4 x 1,0 mm²: black cores

with consecutive numbers

acc. to EN 50334

+ VDE 0293-334

Sheath materia

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

4 x 2 x AWG 26:

max. 350 V

Nominal voltage

4 x 1,0 mm²:

300/500 V

Testing voltage

4 x 2 x AWG 26:

core/core 1500 V

core/screen 1200 V

4 x 1,0 mm²:

core/core 2000

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 10 x d acc. t

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

4 x 2 x AWG 26:

max. 350 V

Nominal voltage

4 x 1,0 mm²:

300/500 V

Testing voltage

4 x 2 x AWG 26:

core/core 1500 V

core/screen 1200 V

4 x 1,0 mm²:

core/core 2000

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 10 x d acc. t

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø
L0694-90014 x 2 x AWG 26 + 4 x 1,0 mm²12,6 mm Send inquiry
item no.
Dimension
Outer-ø
L0694-9001
4 x 2 x AWG 26 + 4 x 1,0 mm²
12,6 mm

Other dimensions and colours are possible on request.
