RT profinet cables CAT 5

2 x 2 x 22 AWG

RT profinet cables CAT 5

RT profinet cables CAT 5

Application

Profinet CAT 5 cable «Type R» for robotic applications. The recommended torsion angle of this robotic cable is ±180°/m. The stranding of the cores 2 x 2 x 22 AWG can be provided as star quad or twisted pairs.

Outstanding features

  • robotic applications
  • type R

Additional information

We assemble our cables with connectors of all well-known manufacturers.

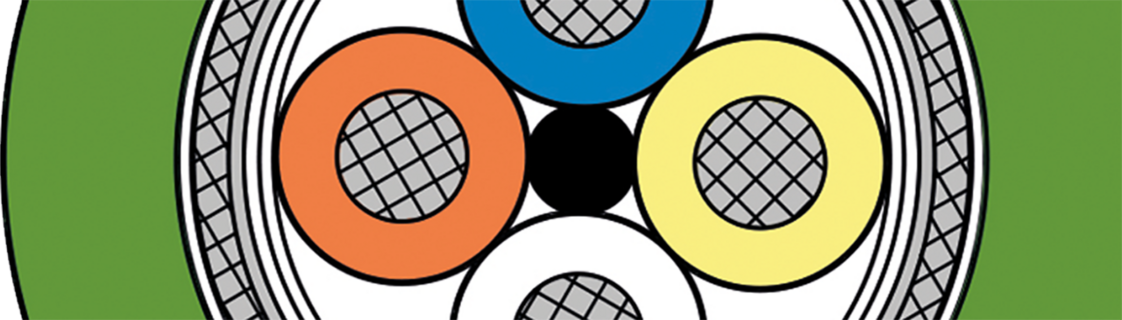

Construction

Conductor

tinned copper strands acc. to IEC 60228

Colour code

white, blue, orange, yellow

Stranding

twisted paires, resp. twisted to star quad

Sheath material

PUR

Sheath colour

green (RAL 6018)

Conductor

tinned copper strands acc. to IEC 60228

Colour code

white, blue, orange, yellow

Stranding

twisted paires, resp. twisted to star quad

Sheath material

PUR

Sheath colour

green (RAL 6018)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Temperature range

flexible application:

-30/+70 °C

Torsion angle

recommended: ±180°/m

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Temperature range

flexible application:

-30/+70 °C

Torsion angle

recommended: ±180°/m

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Cable type Outer-ø Stranding
0668-90012 x 2 x 22 AWGCAT 57,0Sternvierer Send inquiry
0668-90392 x 2 x 22 AWGCAT 57,8paarig Send inquiry
item no.
Dimension
Cable type
Outer-ø
Stranding
0668-9001
2 x 2 x 22 AWG
CAT 5
7,0
Sternvierer
0668-9039
2 x 2 x 22 AWG
CAT 5
7,8
paarig

Other dimensions and colours are possible on request.
