RT Ethernet cables CAT 6

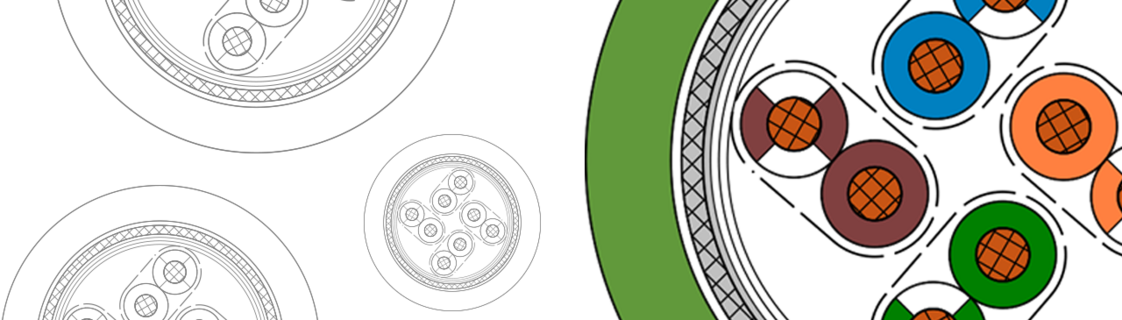

Robotic CAT 6A Ethernet Cable 4 x 2 x 26 AWG

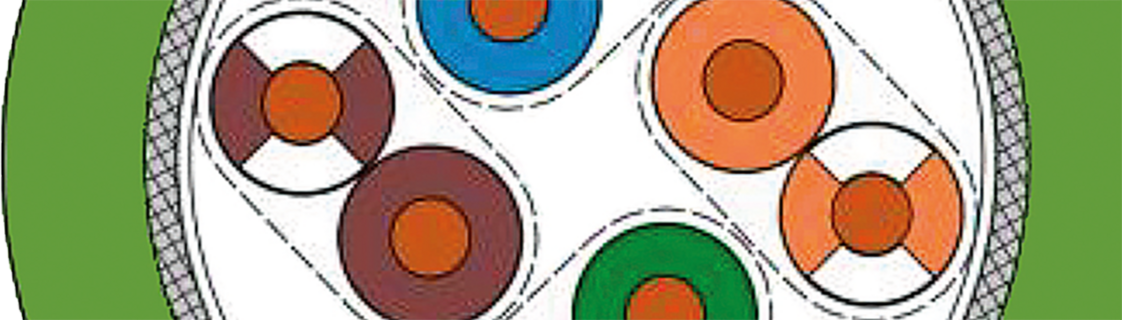

Construction

Conductor

copper strands acc. to IEC 60228

Colour code

coloured acc. to specification

Stranding

cores twisted to pairs

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

green (RAL 6018)

Conductor

copper strands acc. to IEC 60228

Colour code

coloured acc. to specification

Stranding

cores twisted to pairs

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

green (RAL 6018)

Technical Data

Peak operating voltage

max. 90 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Temperature range

flexible application: -30/+70 °C

Torsion angle

recommended: ±180°/m

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Temperature range

flexible application: -30/+70 °C

Torsion angle

recommended: ±180°/m

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Cable type Outer-ø Stranding
1687-46314 x 2 x 26 AWGCAT 6A7,1twisted pairs Send inquiry
item no.
Dimension
Cable type
Outer-ø
Stranding
1687-4631
4 x 2 x 26 AWG
CAT 6A
7,1
twisted pairs

Other dimensions and colours are possible on request.
