Special cable
Data cable with PUR outer sheath and foil-shielded data pairs for deep-sea use
Application
This special cable with a blue PUR jacket is resistant to acids, alkalis, solvents and hydraulic fluids. The cables can be used underwater up to an operating depth of 3,000 metres.
Outstanding features
- high tensile strength
- high tear strength
- high abrasion resistance
- high notch resistance
- high shear strength

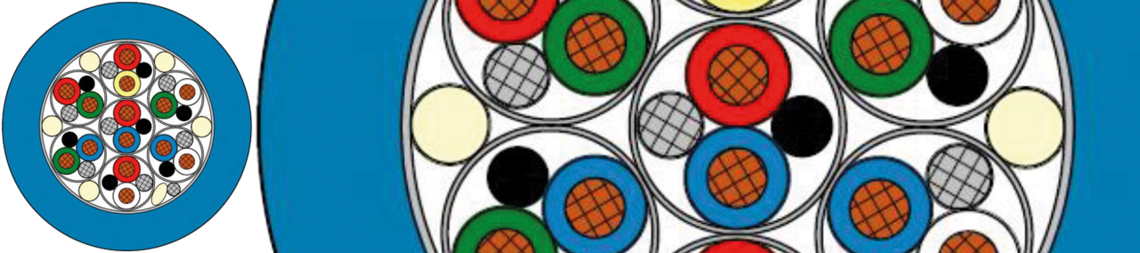

Construction
| Conductor | bare copper strands, fine wires |
|---|---|
| Insulation | SABIX® |
| Aderkennzeichnung | red/blue, red/yellow, red/green, green/blue, white/red, white/blue, white/green |
| Stranding | cores twisted to pairs, pairs twisted in layers |
| Wrapping | foil |
| Sheath material | PUR with smooth surface |
| Sheath colour | sky blue (RAL 5015) |
| Marking | SAB BRÖCKSKES · D-VIERSEN · Special Cable 7x(2x0,50mm²)ST and current meter marking |
bare copper strands, fine wires
SABIX®
red/blue, red/yellow, red/green, green/blue, white/red, white/blue, white/green
cores twisted to pairs, pairs twisted in layers
foil
PUR with smooth surface
sky blue (RAL 5015)
SAB BRÖCKSKES · D-VIERSEN · Special Cable 7x(2x0,50mm²)ST and current meter marking
Technical data
| Peak operating voltage | max. 600 V |
|---|---|
| Testing voltage | core/core: 2500 V core/screen: 2500 V |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Min. bending radius | fixed laying: 120 mm flexible application: 150 mm |
| Impedance | 1 MHz 4,6 dB/100 m 4 MHz 8,5 dB/100 m 10 MHz 12,6 dB/100 m |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | very good - PUR, TMPU acc. to EN 50363-10-2 + DIN VDE 0207-363-10-22 |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Impedance | 1-10 MHz, 50,4-59,6 Ω |
| Capacity | 97-107 pF/m |
| Resistances | good resistance against UV rays, ozone and vapours as well as resistant to fresh and salt water |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
max. 600 V
core/core: 2500 V
core/screen: 2500 V
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
fixed laying: 120 mm
flexible application: 150 mm
1 MHz 4,6 dB/100 m
4 MHz 8,5 dB/100 m
10 MHz 12,6 dB/100 m
acc. to IEC 60754-1 + VDE 0482-754-1
very good - PUR, TMPU acc. to EN 50363-10-2 + DIN VDE 0207-363-10-22
good against acids, alkalines, solvents, hydraulic liquids etc.
1-10 MHz, 50,4-59,6 Ω
97-107 pF/m
good resistance against UV rays, ozone and vapours as well as resistant to fresh and salt water
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø |
Outer-ø ± 10% | Copper figure |
Cable weigh in salt water approx. |
Cable weigh in air approx. |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|---|---|
| item gr. 0390 | 7 x (2 x 0,50) mm² | 0,18 mm | 12,7 mm | 105,6 kg/km | 79 kg/km | 209 kg/km | 39,0 Ω/km | Send inquiry |
cross section
wire-ø
± 10%
in salt water approx.
in air approx.
at 20°C max.
Other dimensions and colours are possible on request.
