Transmission cable / Encoder cable

[4 x (2 x 0,25mm²) D] D

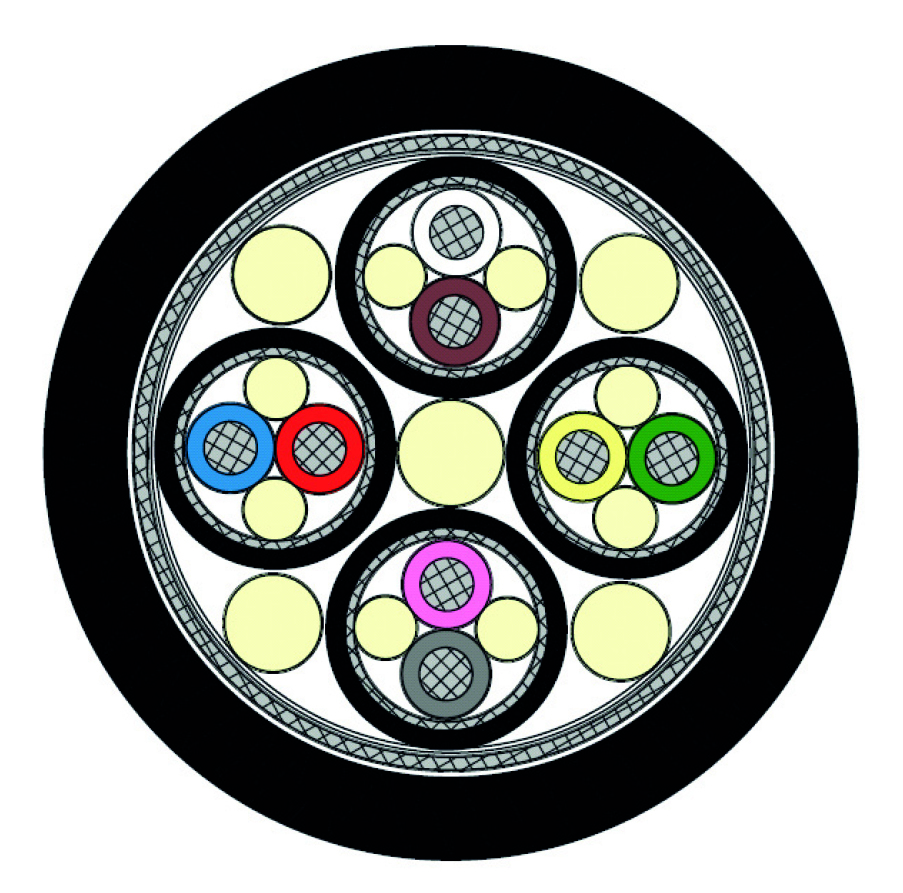

Construction

Conductor

tinned copper strands, fine wires acc. to IEC 60228

Colour code

with reference to DIN 47100

Stranding

twisted pairs wrapped with tinned copper wires

Inner sheath

TPE

Stranding

pairs together

Total screen

wrapped with tinned copper wires

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

tinned copper strands, fine wires acc. to IEC 60228

Colour code

with reference to DIN 47100

Stranding

twisted pairs wrapped with tinned copper wires

Inner sheath

TPE

Stranding

pairs together

Total screen

wrapped with tinned copper wires

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical Data

Peak operating voltage

max. 350 V

PWIS uncritical

free of paint-wetting interfering substances

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Temperature range

flexible application: -40/+70 °C

Min. bending radius

recommended: 10 x d

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

PWIS uncritical

free of paint-wetting interfering substances

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Temperature range

flexible application: -40/+70 °C

Min. bending radius

recommended: 10 x d

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø
L0390-9449[4 x (2 x 0,25 mm²) D] D9,1 mm Send inquiry
item no.
Dimension
Outer-ø
L0390-9449
[4 x (2 x 0,25 mm²) D] D
9,1 mm

Other dimensions and colours are possible on request.
