Single conductor welding cable for robotic applications

Single conductor cable

Single conductor cable

Application

This robot welding cable (single core cable) is suitable for robotic applications.

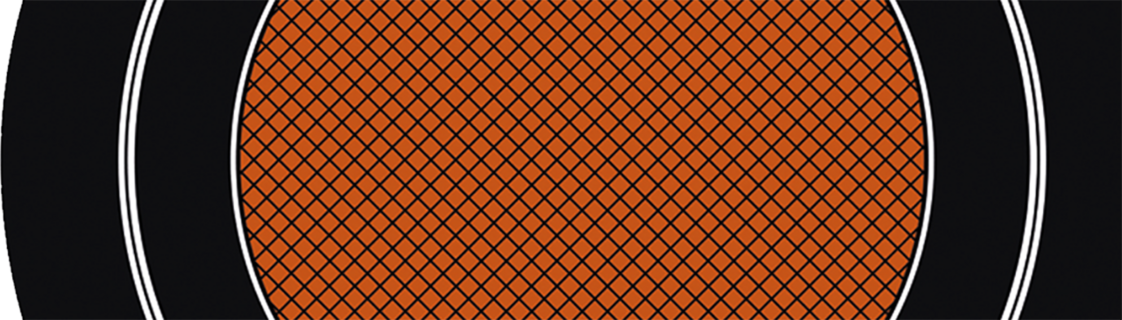

Construction

Conductor

bare copper strands acc. to IEC 60228

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Conductor

bare copper strands acc. to IEC 60228

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Technical data

Operating voltage

750 V (DC)

Testing voltage

2000 V (AC)

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 7,5 x d

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Operating voltage

750 V (DC)

Testing voltage

2000 V (AC)

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 7,5 x d

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Description Dimension Colour code Outer-ø
0761-9051Primary welding cable1 x 16,0 mm²bk/bk10,1 mm Send inquiry
0761-9052Primary welding cable1 x 25,0 mm²bk/bk11,1 mm Send inquiry
0761-9050Primary welding cable1 x 25,0 mm²gnye/bk11,1 mm Send inquiry
0761-9048Primary welding cable1 x 35,0 mm²bk/bk13,3 mm Send inquiry
0761-9072Primary welding cable1 x 35,0 mm²gnye/bk13,3 mm Send inquiry
0761-9054Primary welding cable1 x 50,0 mm²bk/bk15,8 mm Send inquiry
0761-9086Primary welding cable1 x 70,0 mm²bk/bk18,2 mm Send inquiry
0761-9096Primary welding cable1 x 95,0 mm²bk/bk20,7 mm Send inquiry
item no.
Description
Dimension
Colour code
Outer-ø
0761-9051
Primary welding cable
1 x 16,0 mm²
bk/bk
10,1 mm
0761-9052
Primary welding cable
1 x 25,0 mm²
bk/bk
11,1 mm
0761-9050
Primary welding cable
1 x 25,0 mm²
gnye/bk
11,1 mm
0761-9048
Primary welding cable
1 x 35,0 mm²
bk/bk
13,3 mm
0761-9072
Primary welding cable
1 x 35,0 mm²
gnye/bk
13,3 mm
0761-9054
Primary welding cable
1 x 50,0 mm²
bk/bk
15,8 mm
0761-9086
Primary welding cable
1 x 70,0 mm²
bk/bk
18,2 mm
0761-9096
Primary welding cable
1 x 95,0 mm²
bk/bk
20,7 mm

Other dimensions and colours are possible on request.
