Welding cables

Single conductor welding cables for robotic applications, UL recognized, CSA approved

Application

This multi-conductor cable with UL/CSA is used as a welding cables for robots. The cable can be offered in the dimensions 1 x 10.0 mm², 1 x 16.0 mm², 1 x 25.0 mm², 1 x 35.0 mm², 1 x 50.0 mm² and 1 x 70.0 mm².

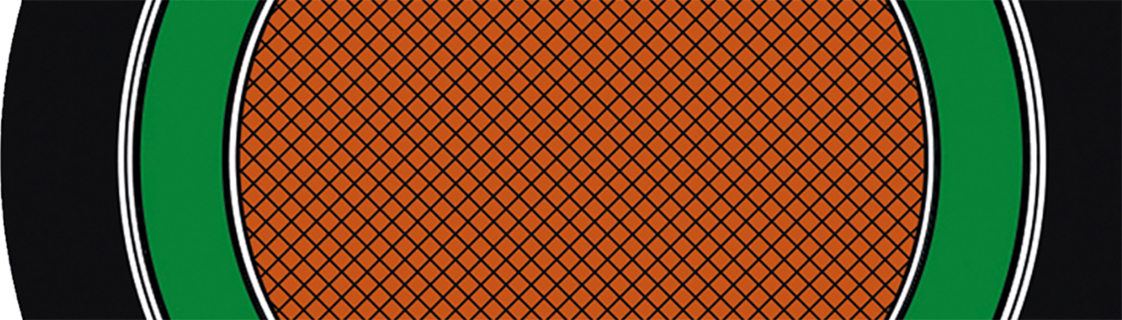

Construction

Conductor

copper strands acc. to IEC 60228

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Conductor

copper strands acc. to IEC 60228

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Technical Data

Operating voltage

750 V (DC)

Voltage UL/CSA

1000 V

Testing voltage

10000 V

Temperature range

flexible application: -40/+90 °C

UL : up to +80 °C

Min. bending radius

recommended: 7,5 x d

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Operating voltage

750 V (DC)

Voltage UL/CSA

1000 V

Testing voltage

10000 V

Temperature range

flexible application: -40/+90 °C

UL : up to +80 °C

Min. bending radius

recommended: 7,5 x d

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Colour code Outer-ø
3768-90691 x 10,0 mm²bk/gnye7,0 mm Send inquiry
3768-90101 x 16,0 mm²bk/gnye8,9 mm Send inquiry
0390-90941 x 25,0 mm²gnye/bk11,1 mm Send inquiry
0390-96021 x 25,0 mm²bk/bk11,1 mm Send inquiry
0390-96041 x 35,0 mm²bk/bk13,3 mm Send inquiry
0390-96051 x 35,0 mm²bk/gnye13,3 mm Send inquiry
0390-95821 x 50,0 mm²bk/bk15,8 mm Send inquiry
0390-95831 x 70,0 mm²bk/bk18,0 mm Send inquiry
item no.
Dimension
Colour code
Outer-ø
3768-9069
1 x 10,0 mm²
bk/gnye
7,0 mm
3768-9010
1 x 16,0 mm²
bk/gnye
8,9 mm
0390-9094
1 x 25,0 mm²
gnye/bk
11,1 mm
0390-9602
1 x 25,0 mm²
bk/bk
11,1 mm
0390-9604
1 x 35,0 mm²
bk/bk
13,3 mm
0390-9605
1 x 35,0 mm²
bk/gnye
13,3 mm
0390-9582
1 x 50,0 mm²
bk/bk
15,8 mm
0390-9583
1 x 70,0 mm²
bk/bk
18,0 mm

Other dimensions and colours are possible on request.
