Welding cables

Multi conductor welding cable for robotic applications

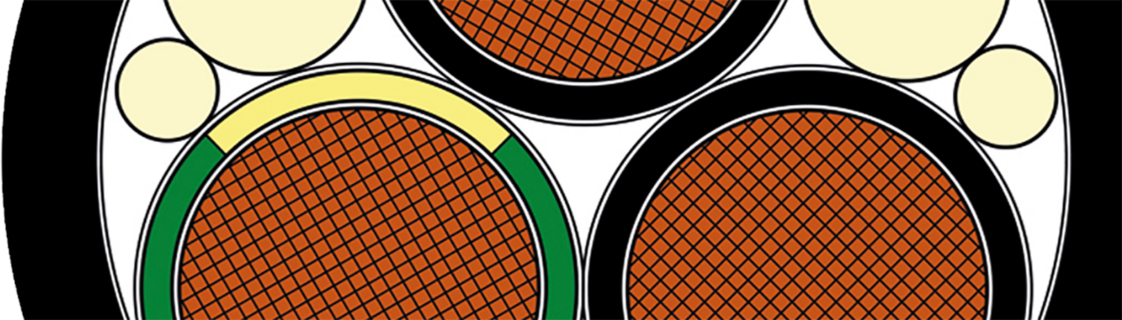

Construction

Conductor

bare copper strands acc. to IEC 60228

Insulation

PUR

Colour code

black cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

10-2 + VDE 0207-363-10-2

Sheath colour: b

Conductor

bare copper strands acc. to IEC 60228

Insulation

PUR

Colour code

black cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

10-2 + VDE 0207-363-10-2

Sheath colour: b

Technical data

Operating voltage

≤ 16,0 mm² = 500 V (DC)

≥ 25,0 mm² = 750 V (DC)

Testing voltage

≤ 16,0 mm² = 1500 V (AC)

≥ 25,0 mm² = 2000 V (AC)

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 7,5 x d

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Operating voltage

≤ 16,0 mm² = 500 V (DC)

≥ 25,0 mm² = 750 V (DC)

Testing voltage

≤ 16,0 mm² = 1500 V (AC)

≥ 25,0 mm² = 2000 V (AC)

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 7,5 x d

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Description Dimension Outer-ø
0774-9111Welding cable3 x 16,0 mm²19,3 mm Send inquiry
0774-9084Welding cable3 x 25,0 mm²23,3 mm Send inquiry
0774-9085Welding cable3 x 35,0 mm²26,6 mm Send inquiry
0774-9088Welding cable3 x 50,0 mm²30,8 mm Send inquiry
item no.
Description
Dimension
Outer-ø
0774-9111
Welding cable
3 x 16,0 mm²
19,3 mm
0774-9084
Welding cable
3 x 25,0 mm²
23,3 mm
0774-9085
Welding cable
3 x 35,0 mm²
26,6 mm
0774-9088
Welding cable
3 x 50,0 mm²
30,8 mm

Other dimensions and colours are possible on request.

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
