SAB Kabel

TEDS Components

in measuring cables

Application

Within the range of sensors and measuring technique intelligent sensors are frequently used. TEDS Transducer Electronic Data Sheet is an electronic memory element on which identification data of the connected sensors are recorded. Wherever space is limited or retrofitting required, TEDS components can be added to the connection technique. SAB Bröckskes has the possibility to integrate TEDS components into the different standard connection types of measuring technique (for example SUB-D, Lemo, ODU connectors). In order to guarantee the correct fitting of the TEDS, the function of the components is controlled during the production process. Identification data can be directly written on it on request.

Additional information

Example/pin assignment

  core  Sub-D-plug connector
  grey  pin 1
  white  pin 2
  yellow  pin 3
  pin 4
  pin 5
  green  pin 6
  brown  pin 7
  rose  pin 8
  pin 9
  screen    housing


Please inform us about the required pin assignment.

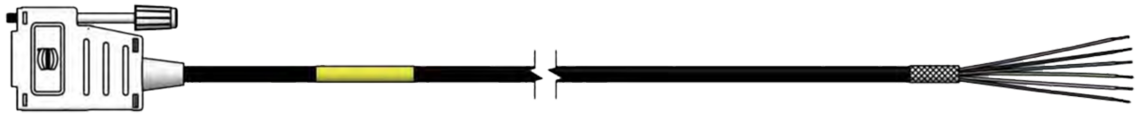

Construction

connection side 1

❏ Lemo type: ____________

❏ ODU type: ____________

❏ Fischer type: ____________

❏ SUB-D plug connector _____ pins

❏ SUB-D female connector _____ terminals

cable typ (125°C temperature resistant measuring cable 2.500h)

❏ 6 x 28 AWG L3833-9284

❏ 8 x 28 AWG L3833-9301

❏ other dimension are possible on request

cable length

❏ 1 m

❏ 3 m

❏ 5 m

❏ other lengths are possible on request

connection side 2

❏ Lemo type: ____________

❏ ODU type: ____________

❏ Fischer type: ____________

❏ SUB-D plug connector _____ pins

❏ SUB-D female connector _____ terminals

❏ open end

connection side 1

❏ Lemo type: ____________

❏ ODU type: ____________

❏ Fischer type: ____________

❏ SUB-D plug connector _____ pins

❏ SUB-D female connector _____ terminals

cable typ (125°C temperature resistant measuring cable 2.500h)

❏ 6 x 28 AWG L3833-9284

❏ 8 x 28 AWG L3833-9301

❏ other dimension are possible on request

cable length

❏ 1 m

❏ 3 m

❏ 5 m

❏ other lengths are possible on request

connection side 2

❏ Lemo type: ____________

❏ ODU type: ____________

❏ Fischer type: ____________

❏ SUB-D plug connector _____ pins

❏ SUB-D female connector _____ terminals

❏ open end

Highly flexible cables according to your special requirements
