SABIX® BL 408 FRNC
halogen-free flexible power cable 0,6/1 kV

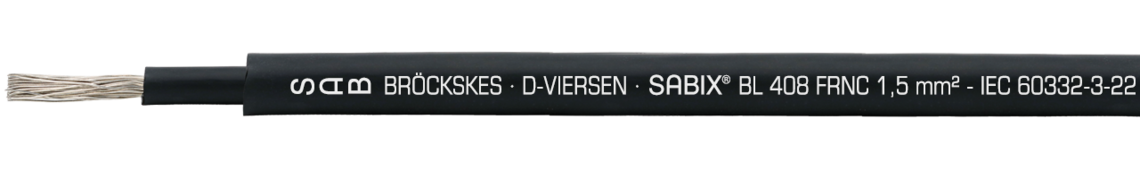

Marking for SABIX® BL 408 FRNC 64080182: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 408 FRNC 1,5mm² - IEC 60332-3-22 - 0,6/1kV DNV CE and current meter marking
Application
Especially for use in shipbuilding industry!
Outstanding features
- halogen-free
- asbestos-free
- no flame propagation
- flame retardant and self-extinguishing
- flexible
- for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
- approvals: DNV
Additional information
Possible on request:
- bare copper strands
- alternative colour code and sheath colour
Construction
| Conductor | tinned copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | special SABIX® |
| Colour code | black (RAL 9005) |
| Sheath material | special SABIX® SHF 1 compound acc. to IEC 60092-360 |
| Mantelfarbe | schwarz (RAL 9005) |
tinned copper strands acc. to IEC 60228, VDE 0295, class 5
special SABIX®
black (RAL 9005)
special SABIX®
SHF 1 compound acc. to IEC 60092-360
schwarz (RAL 9005)
Technical data
| Nominal voltage | Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | core/core 4000 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d |
| Temperature range | fixed laying: -40/+90 °C flexible applicationt: -30/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A. Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 0,6/1 kV
core/core 4000 V
fixed laying: 4 x d
flexible application: 6 x d
fixed laying: -40/+90 °C
flexible applicationt: -30/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.
Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to IEC 61034 + VDE 0482-1034
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
Nominal cross section | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L64080180 | 1 mm² | 5,4 mm | 9,6 kg/km | 43 kg/km | Send inquiry |
| L64080182 | 1,5 mm² | 5,7 mm | 14,4 kg/km | 50 kg/km | Send inquiry |
| L64080184 | 2,5 mm² | 6,1 mm | 24 kg/km | 62 kg/km | Send inquiry |
| L64080186 | 4 mm² | 7,1 mm | 38,4 kg/km | 88 kg/km | Send inquiry |
| L64080187 | 6 mm² | 7,6 mm | 57,6 kg/km | 110 kg/km | Send inquiry |
| L64080188 | 10 mm² | 8,8 mm | 96 kg/km | 168 kg/km | Send inquiry |
| L64080189 | 16 mm² | 10,2 mm | 153,6 kg/km | 236 kg/km | Send inquiry |
| L64080190 | 25 mm² | 12 mm | 240 kg/km | 345 kg/km | Send inquiry |
| L64080191 | 35 mm² | 13,7 mm | 336 kg/km | 469 kg/km | Send inquiry |
| L64080192 | 50 mm² | 15,4 mm | 480 kg/km | 641 kg/km | Send inquiry |
| L64080193 | 70 mm² | 17,9 mm | 672 kg/km | 850 kg/km | Send inquiry |
| L64080194 | 95 mm² | 20,6 mm | 912 kg/km | 1137 kg/km | Send inquiry |
| L64080195 | 120 mm² | 22,7 mm | 1152 kg/km | 1394 kg/km | Send inquiry |
| L64080196 | 150 mm² | 24,7 mm | 1440 kg/km | 1708 kg/km | Send inquiry |
| L64080197 | 185 mm² | 27 mm | 1776 kg/km | 2067 kg/km | Send inquiry |
| L64080198 | 240 mm² | 31 mm | 2304 kg/km | 2746 kg/km | Send inquiry |
section
Other dimensions and colours are possible on request.
