SABmed S

Connecting cable

Application

Pliable cable for electrotherapy devices with "non-sticky" surface. Fields of application of the biocompatible connecting cable include:

  • Shock wave
  • Ultrasound
  • Stimulation current

Depending on your requirements, we develop customised medical cables exactly for your application.

Outstanding features

  • biocompatible
  • pliable

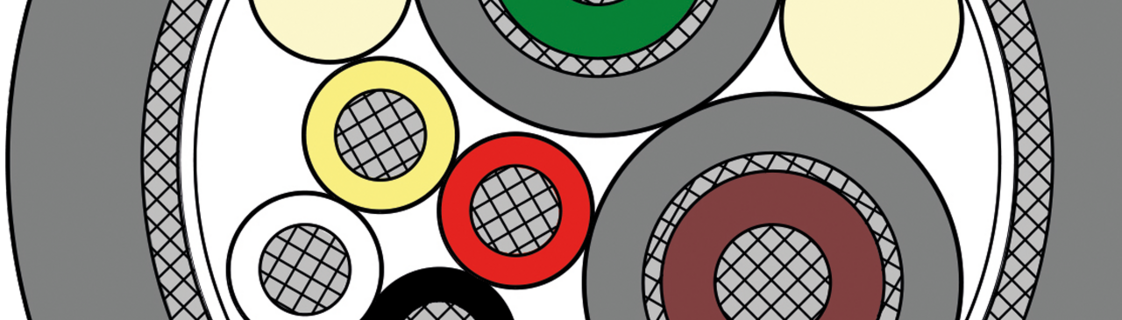

Typical Construction

Conductor

finely-stranded, silver-plated copper

Insulation

FEP

Screen

highly-efficient tinned copper braid

Sheath material

biocompatible SAB med S

Conductor

finely-stranded, silver-plated copper

Insulation

FEP

Screen

highly-efficient tinned copper braid

Sheath material

biocompatible SAB med S

Technical Data

Voltage

up to 50 V

Temperature range

-40°C/+180°C

Testing voltage

selection test acc. to 2 MOP

Cleaning

autoclavable, standard whipe disinfection

Surface

„non-sticky“

Voltage

up to 50 V

Temperature range

-40°C/+180°C

Testing voltage

selection test acc. to 2 MOP

Cleaning

autoclavable, standard whipe disinfection

Surface

„non-sticky“
