Hot runner mineral insulated thermocouple

Hot runner mineral insulated thermocouple

Hot runner mineral insulated thermocouple

Application

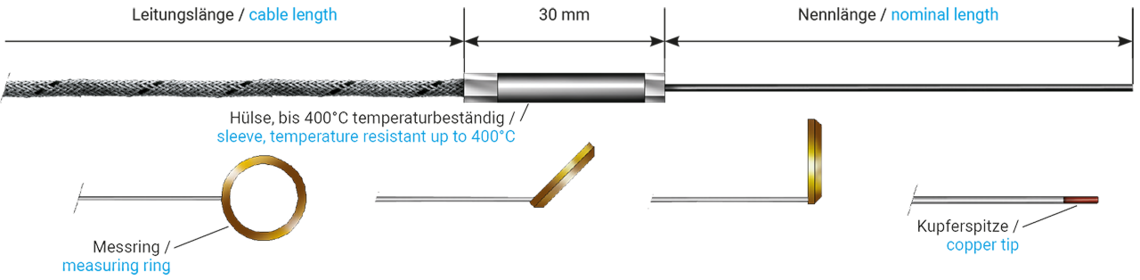

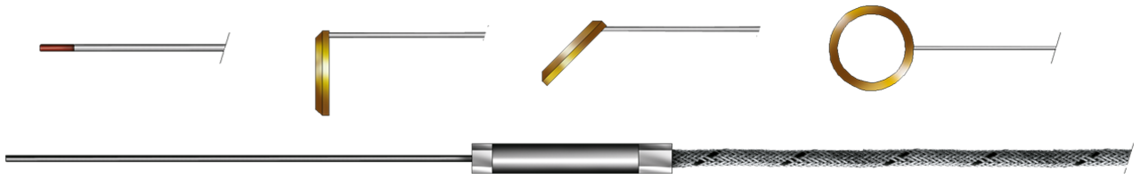

The hot runner insulated thermocouple T219 has a high temperature resistant connection sleeve and is highly suitable for the application in hot runner technique. Three standard construction types of the measuring tip are available. This sensor type can be obtained with copper tip, measuring ring, or without fix accessories. Without fix accessories the mineral insulated thermocouple is suitable for the placing into a groove considering the diameter. After being deformed, the copper tip is suitable to be cramped under a pipe clamp. Types with measuring ring are especially suitable to be mounted in the hot runner nozzle. The measuring rings are manufactured with a special inner diameter adapted to the nozzle diameter, so that an optimal temperature collection is guaranteed due to the achieved positive locking.

Additional information

  • Also available in type K, T or L and classes 1 or 2.
  • The on the left mentioned technical data are standard data.
  • The inner and outer-Ø as well as the angle to the mineral insulated thermocouple can be chosen on request.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

- form A, insulated

- form B, grounded

Material

- 1.4541

- 2.4816

Nominal length

According to customer requests. Please specify in mm.

Diameter

- Ø 0,5 mm

- Ø 0,64 mm

- Ø 1,0 mm

- Ø 1,5 mm

Temperature resistance of the sleeve

▪ +200°C

▪ +300°C

▪ +400°C

Optional with ring or copper tip

dimension - acc. to customer’s request

Type

- with kink protection

- without kink protection

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- extension cable strand/fiber glass/fiber glass/Pi-foil +300°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

- form A, insulated

- form B, grounded

Material

- 1.4541

- 2.4816

Nominal length

According to customer requests. Please specify in mm.

Diameter

- Ø 0,5 mm

- Ø 0,64 mm

- Ø 1,0 mm

- Ø 1,5 mm

Temperature resistance of the sleeve

▪ +200°C

▪ +300°C

▪ +400°C

Optional with ring or copper tip

dimension - acc. to customer’s request

Type

- with kink protection

- without kink protection

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- extension cable strand/fiber glass/fiber glass/Pi-foil +300°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request
