T221

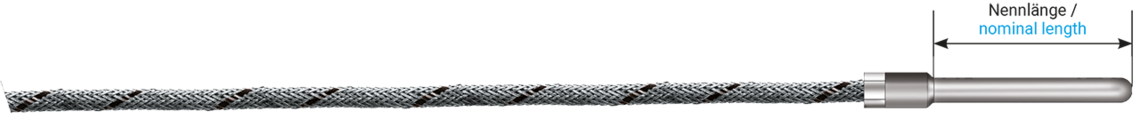

Thermocouple with stainless steel sleeve

thermocouple with stainless steel sleeve

thermocouple with stainless steel sleeve

Application

The thermocouple with stainless steel is made for the temperature collection at plastics processing machines or similar. The stain­less steel wire armouring of the connection cable is used as mechanical protection.

Additional information

  • Also available in type K, T or L and classes 1 or 2.
  • The on the left mentioned technical data are standard data.
  • Individual parameters, e. g. connection cable, double thermocouple or cable end can be added or modified on request.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

- form A, insulated

- form B, grounded

Material

1.4541

Nominal length

According to customer requests. Please specify in mm.

Diameter

- Ø 3,0 mm

- Ø 3,5 mm

- Ø 4,0 mm

- Ø 5,0 mm

- Ø 6,0 mm

- Ø 8,0 mm

Bottom shape

- flat

- 118°C

- spherical

Optional with sheet

- 8 x 15 mm / hole Ø 5 mm

- other dimension - acc. to customer’s request

Type

- with kink protection

- with fiberglass sleeve

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- extension cable strand/PFA/PFA +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

- form A, insulated

- form B, grounded

Material

1.4541

Nominal length

According to customer requests. Please specify in mm.

Diameter

- Ø 3,0 mm

- Ø 3,5 mm

- Ø 4,0 mm

- Ø 5,0 mm

- Ø 6,0 mm

- Ø 8,0 mm

Bottom shape

- flat

- 118°C

- spherical

Optional with sheet

- 8 x 15 mm / hole Ø 5 mm

- other dimension - acc. to customer’s request

Type

- with kink protection

- with fiberglass sleeve

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- extension cable strand/PFA/PFA +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request
