Molten mass thermocouple

Molten mass thermocouple

Molten mass thermocouple

Application

The molten mass thermocouple enbales a measurement of the molten mass temperature in injection nozzles with the help of its special construction. The surface treated measuring tip is also suitable for application in reinforced plastics. In case of adequate mounting, only the nitrated measuring tip is in contact with the molten mass stream. Thus, the temperature collection takes place directly in the mass with­out additional protecting sleeve.

Additional information

  • Also available in type K, T or L and classes 1 or 2.
  • The on the left mentioned technical data are standard data.
  • Individual parameters, e. g. thread can be added or modified on request.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

form B, grounded

Limit deviation

- class 1

- class 2

Temperature range

0°C up to + 400°C

Thread

- M8 x 1 VA

- other threads - acc. to customer’s request

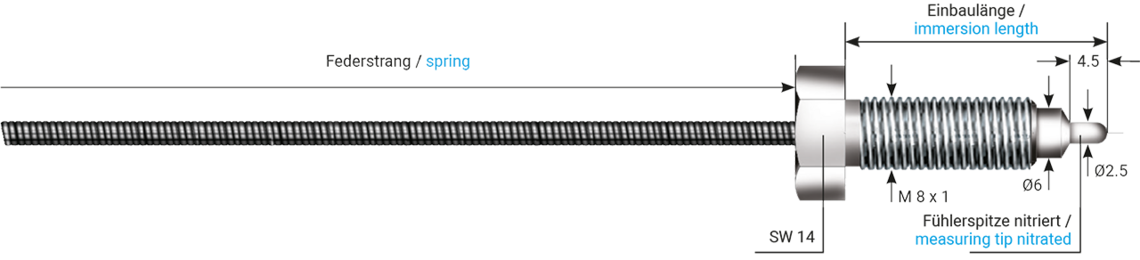

Immersion length

31,5 mm

Diameter

Ø 6,0 mm / 2,5 mm

Connection cable

- extension cable wire/fiber glass/fiber glass +250°C

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

form B, grounded

Limit deviation

- class 1

- class 2

Temperature range

0°C up to + 400°C

Thread

- M8 x 1 VA

- other threads - acc. to customer’s request

Immersion length

31,5 mm

Diameter

Ø 6,0 mm / 2,5 mm

Connection cable

- extension cable wire/fiber glass/fiber glass +250°C

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request
