T231 / T233

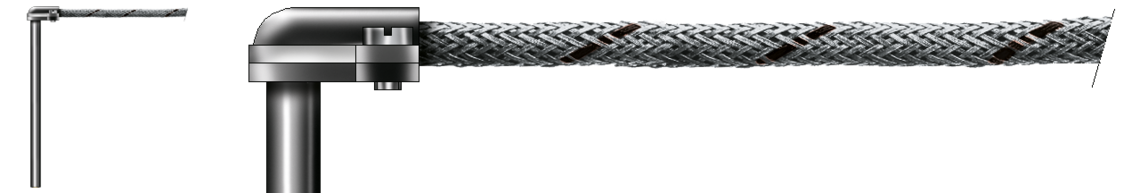

Angle thermocouple

Angle thermocouple

Angle thermocouple

Application

The angle thermocouple type T is made for the temperature collection at plastics processing machines. It is especially appropriate, whenever a straight cable lead, for example, due to space reasons is not possible or wanted. The steel wire armouring of the connection cable is used as mechanical protection. Fixing is reached because of a clamping screw connection.

Additional information

  • Also available in type K, T or L and classes 1 or 2.
  • The on the left mentioned technical data are standard data.
  • Individual parameters, e. g. connection cable, double thermocouple, cable end or higher temperature resistance can be added or modified on request.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2, form B

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

Diameter

- Ø 6,0 mm

- Ø 8,0 mm

Type

- with kink protection

- without kink protection

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2, form B

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

Diameter

- Ø 6,0 mm

- Ø 8,0 mm

Type

- with kink protection

- without kink protection

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request
