T242 / T245

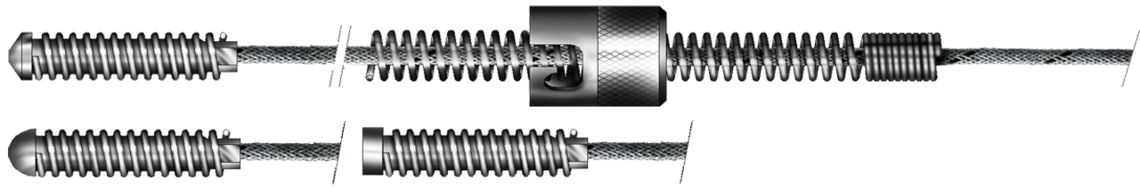

Bayonet Thermocouple Type K, Type J
Application
Bayonet thermocouples of type K and type J (or other thermocouple types on request) are used in industrial process measurement, particularly for precise temperature monitoring on tools and machines in the plastics processing industry. The sensors provide reliable and long-term stable measurements under demanding production conditions and are available with either flat or conical measuring tips.
The bayonet lock with threaded spring ensures secure mounting and constant contact pressure. The rotatable bayonet cap allows immersion depth and installation length to be adjusted flexibly to the measurement task, ensuring reproducible results.
Bayonet thermocouples can be customised according to customer requirements, for example regarding thermocouple type, measuring tip, spring length, tip shape, bayonet diameter, connection cable, cable length, and connector type. The stainless steel wire braiding provides mechanical protection for the connection cable and allows use in demanding industrial environments.
These bayonet thermocouples, for example with flat or conical measuring tips and protective sleeve, are ideally suited for precise, robust, and application-optimised temperature measurement in machine and plant engineering. Typical applications include the plastics industry (extrusion and injection molding machines), the packaging industry (film sealing machines), and the tool and mold making sector.
Outstanding features
- Precise temperature measurement with type K or type J thermocouples for reproducible results
- Flexible installation depth and immersion length thanks to the rotatable bayonet cap and threaded spring
- Selectable measuring tip: flat or conical design for optimal adaptation to the application
- Robust construction with stainless steel wire braiding for mechanical protection and long service life
- Customisable design for thermocouple type, measuring tip, spring length, tip shape, bayonet diameter, connection cable, cable length, and connector type
Additional information
- Also available in type K, T or L and classes 1 or 2.
- The on the left mentioned technical data are standard data.
- Individual parameters, e. g. connection cable, double thermocouple, insulated type, spring length, bayonet or cable end can be added or modified on request.
- In addition to bayonet thermocouples, bayonet sensors pt100/pt1000 are also available for the plastics processing industry.
→ To the bayonet probe pt100/pt1000 with protective sleeve
For custom solutions or further information, please feel free to contact us by phone, email, or via our contact form.
Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: class 2 - 1 x type J - 1 x type K - other thermocouples - acc. to customer’s request |
|---|---|
| Measuring point | - form A, insulated - form B, grounded |
| Material | 1.4305 |
| Spring length | - 200 mm - other spring lengths - acc. to customer’s request |
| Diameter | - Ø 6,0 mm - Ø 8,0 mm |
| Bottom shape | - flat - 118° - spherical |
| Options | with ceramic as thermal insulation |
| Bayonet | - Ø i = 12,2 mm / 1 bajonet - Ø i = 12,2 mm / 2 bajonet - Ø i = 15,0 mm / 1 bajonet - Ø i = 15,0 mm / 2 bajonet dimension: __________ |
| Connection cable | - extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C - extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C - other connection cables - acc. to customer’s request see also survey of connecting cables for thermocouples |
| Cable length | The length of the connection cable can be freely selected. Please specify in m. |
| Connection ends | - miniature thermoplug - standard plug - miniature socket - clips - bare ends - Lemo plug type - acc. to customer’s request - Lemo socket type - acc. to customer’s request - other cable ends - acc. to customer’s request |
