Angle thermocouple

Angle thermocouple

Angle thermocouple

Application

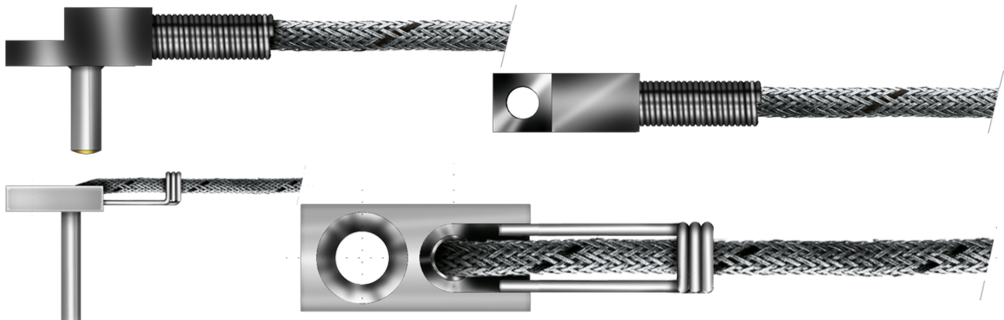

The right angle thermocouple type L is made for the temperature collection at tools. It offers a simple fixing by a screw with initial tension (guarantees the contact between probe and plain to be measured). The stainless steel wire armouring of the connection cable is used as mechanical protection.

Additional information

  • Also available in type K, T or L and classes 1 or 2.
  • The on the left mentioned technical data are standard data.
  • Individual parameters, e. g. connection cable, double thermocouple, nominal length, bayonet or cable end can be added or modified on request.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

- form A, insulated

- form B, grounded

Material

1.4571

Diameter

- Ø 3,0 mm

- Ø 4,0 mm

- Ø 5,0 mm

Fixing and spiral spring

- with

- without

Nominal length

According to customer requests. Please specify in mm.

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

- form A, insulated

- form B, grounded

Material

1.4571

Diameter

- Ø 3,0 mm

- Ø 4,0 mm

- Ø 5,0 mm

Fixing and spiral spring

- with

- without

Nominal length

According to customer requests. Please specify in mm.

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request
