T286

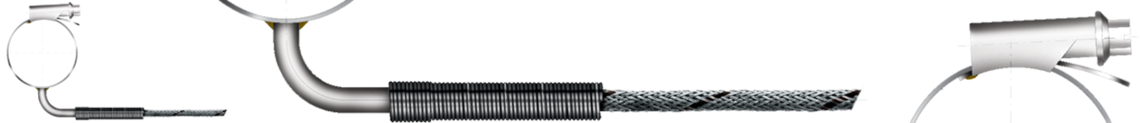

Pipe-clamp thermocouple

Pipe-clamp thermocouple

Pipe-clamp thermocouple

Application

The pipe-clamp thermocouple T286 is appropriate for the temperature collection at conduits, generally spoken, at all cylindric dimensions as well as at plastics processing machines. The fixing is done by a pipe clamp. The stainless steel wire armouring of the connection cable is used as mechanical protection.

Additional information

  • Also available in type K, T or L and classes 1 or 2.
  • The on the left mentioned technical data are standard data.
  • Individual parameters, e. g. connection cable, double thermocouple, pipe-clamp-Ø or cable end can be added or modified on request.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

soldered with pipe clamp

Material

1.4571

Material pipe clamp

1.4016

Clamping range

- 25 bis 40 mm

- other clamping ranges - acc. to customer’s request

Nominal diameter

- 32 mm

- other nominal diameter - acc. to customer’s request

Diameter

Ø 6,0 mm

Temperature range

+ 400°C

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

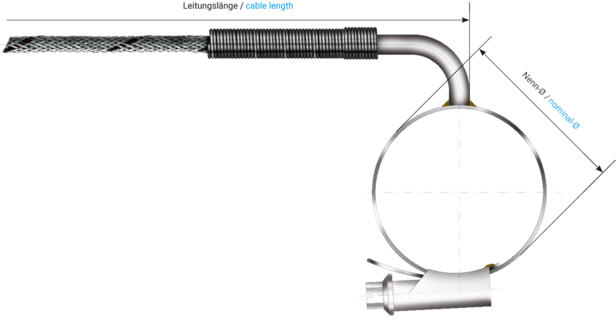

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

soldered with pipe clamp

Material

1.4571

Material pipe clamp

1.4016

Clamping range

- 25 bis 40 mm

- other clamping ranges - acc. to customer’s request

Nominal diameter

- 32 mm

- other nominal diameter - acc. to customer’s request

Diameter

Ø 6,0 mm

Temperature range

+ 400°C

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request
