T393

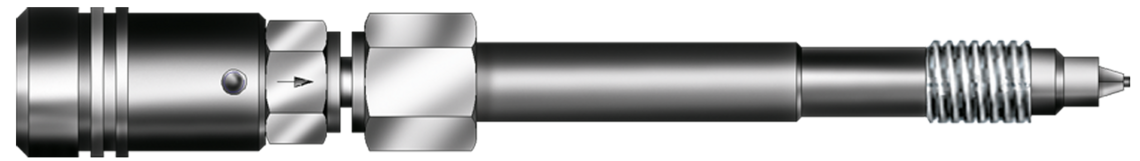

Molten mass temperature probe

Molten mass temperature probe

Molten mass temperature probe

Application

The molten mass temperature probe T393 is designed for the temperature collection of fictile plastics in extruders, injection moulders, and injection tools. Our molten mass temperature probes with swordshaped measuring tip have a quick response time and avoid any waviness in the mass due to its flow-favouring shape. The special mounting of the measuring tip keeps the fault due to heat dissipation as small as possible. Our standard measuring tips are made of stainless steel, material no. 1.4571. For especially abrasive plastics measuring tips with CVD-coating made of titanium carbide / titanium nitride are available.

Additional information

  • Also available in type K, T or L and classes 1 or 2.

Construction

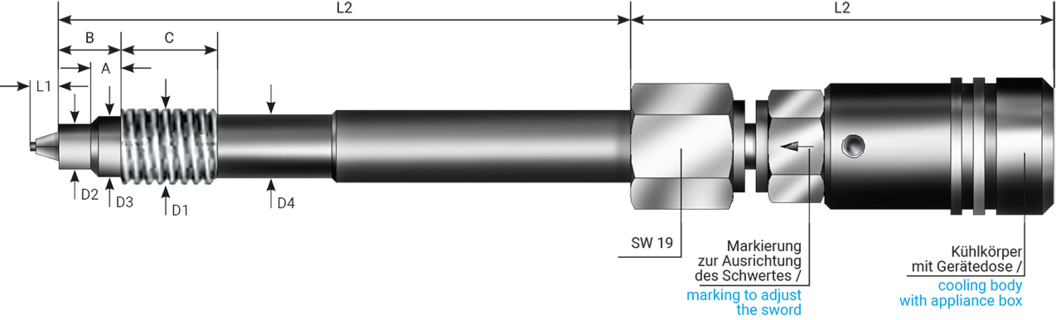

Molten mass temperature probe

The dimensions of the mass temperature probe enable the installation in already existing pressure absorption mounting bores. The standard threads are 1/2”-20UNF and M 18 x 1.5.



With a swordshaped measuring tip a marking makes possible the exact fixing of the sword in flow direction.



The molten mass temperature probes are available as straight or angle construction type with:

- fixed cable connection

- integrated plug-in connection at the end of the protecting tube plus extension cable with counter-plug available.

Response time

Time     SAB T-393

T50          4,4 s

T90          8,1 s

Sword and shank length

- sword length min. 5, max. 30 mm

- shank length standard length 152 mm

Molten mass temperature probe

The dimensions of the mass temperature probe enable the installation in already existing pressure absorption mounting bores. The standard threads are 1/2”-20UNF and M 18 x 1.5.



With a swordshaped measuring tip a marking makes possible the exact fixing of the sword in flow direction.



The molten mass temperature probes are available as straight or angle construction type with:

- fixed cable connection

- integrated plug-in connection at the end of the protecting tube plus extension cable with counter-plug available.

Response time

Time     SAB T-393

T50          4,4 s

T90          8,1 s

Sword and shank length

- sword length min. 5, max. 30 mm

- shank length standard length 152 mm
