T393

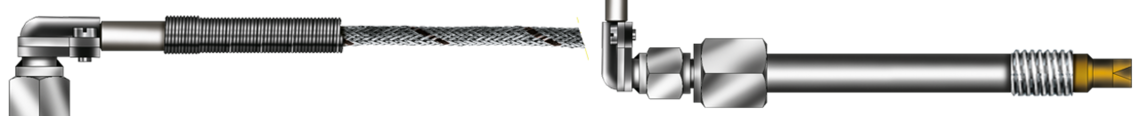

Molten mass temperature probe

Molten mass temperature probe

Molten mass temperature probe

Application

The molten mass temperature probe T393 is made especially for the temperature collection of fictile plastics in extruders, injection moulders, and injection tools. Our molten mass temperature probes with swordshaped measuring tip have a quick response time and avoid any waviness in the mass due to its flow-favouring shape. The special mounting of the measuring tip keeps the fault due to heat dissipation as small as possible. Our standard measuring tips are made of stainless steel, material no. 1.4571. It is appropriate for abrasive plastics measuring tips with CVD-coating made of titanium carbide; titanium nitride are available.

Additional information

  • Also available in type K, T or L and classes 1 or 2.
  • The on the left mentioned technical data are standard data.
  • Individual parameters, e. g. immersion depth, connection cable, double thermocouple, Pt 100 in 2-, 3- or 4-wire circuit, or cable end can be added or modified on request.
  • Hardness of the measuring tip acc. to Vickers (HV)
    TiC/TiN= HV 2400
    Wolfram - Carbit = HV 2080

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

form A, insulatede measuring point

Dimension L1

According to customer requests. Please specify in mm.

Dimension L2

According to customer requests. Please specify in mm.

Temperature range

+600°C

Thread

- M18 x 1,5

- other thread - acc. to customer’s request

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Measuring point

form A, insulatede measuring point

Dimension L1

According to customer requests. Please specify in mm.

Dimension L2

According to customer requests. Please specify in mm.

Temperature range

+600°C

Thread

- M18 x 1,5

- other thread - acc. to customer’s request

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request
