T521

Plug-in resistance thermometer

Plug-in resistance thermometer

Plug-in resistance thermometer

Application

The Pt 1000 plug-in resistance thermometer T 521 is designed for the temperature collection at plastics processing machines or similar. The stainless steel wire armouring of the connection cable is used as mechanical protection.

Additional information

  • Also available as Pt 500 or Pt 1000 with limit deviations in classes A or B.
  • The on the left mentioned technical data are standard data.
  • Individual parameters, e. g. nominal length, connection cable, double resistance thermometer in 3-or 4- wire circuit, cable end or higher temperature resistance can be added or modified on request.
  • With a 2-wire circuit only one class accuracy class B accuracy can be confirmed.

Construction

RTD

1 x Pt 100

Limit deviation

- class A

- class B

Limiting deviation

- class A     - -30°C / +300°C    - -100°C / +450°C

- class B     - -50°C / +500°C     - -196°C / +600°C

Connection type of inner wire

- 2-wire circuit

- other wires - acc. to customer’s request

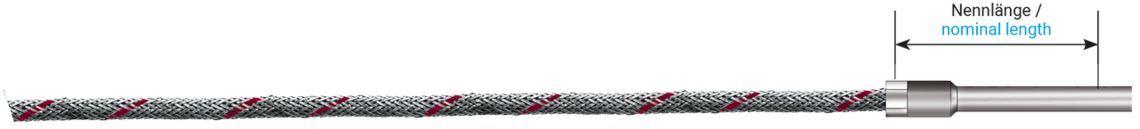

Nominal length

- 29 mm

- 31 mm

Diameter

Ø 3,5 mm

Material

1.4571

Type

- with kink protection

- without kink protection

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

RTD

1 x Pt 100

Limit deviation

- class A

- class B

Limiting deviation

- class A     - -30°C / +300°C    - -100°C / +450°C

- class B     - -50°C / +500°C     - -196°C / +600°C

Connection type of inner wire

- 2-wire circuit

- other wires - acc. to customer’s request

Nominal length

- 29 mm

- 31 mm

Diameter

Ø 3,5 mm

Material

1.4571

Type

- with kink protection

- without kink protection

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request
