T531

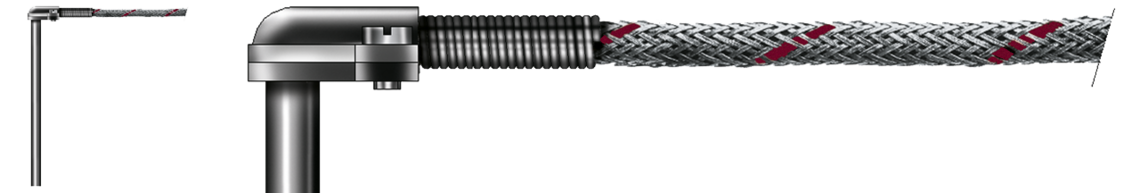

Angle resistance thermometer

Angle resistance thermometer

Angle resistance thermometer

Application

The Pt 500 angle resistance thermometer is designed for the temperature collection at plastics processing machines or similar. It is especially appropriate, whenever a straight cable lead, for example, due to space reasons is not possible or wanted. The stainless steel wire armouring of the connection cable is used as mechanical protection. It gets fixed by a clamping screw connection.

Additional information

  • Also available as Pt 500 or Pt 1000 with limit deviations in classes A or B.
  • The on the left mentioned technical data are standard data.
  • Individual parameters, e. g. nominal length, connection cable, double resistance thermometer in 3-or 4- wire circuit, cable end or higher temperature resistance can be added or modified on request.
  • With a 2-wire circuit only one class accuracy class B accuracy can be confirmed.

Construction

RTD

- 1 x Pt 100

- 2 x Pt 100

Limit deviation

- class A

- class B

Limiting deviation

- class A     - -30°C / +300°C     - -100°C / +450°C

- class B     - -50°C / +500°C     - -196°C / +600°C

Connection type of inner wire

- 2-wire circuit

- other wires - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

Diameter

- Ø 6,0 mm

- Ø 8,0 mm

- other diameter - acc. to customer’s request

Material

1.4571

Type

- with kink protection

- without kink protection

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

RTD

- 1 x Pt 100

- 2 x Pt 100

Limit deviation

- class A

- class B

Limiting deviation

- class A     - -30°C / +300°C     - -100°C / +450°C

- class B     - -50°C / +500°C     - -196°C / +600°C

Connection type of inner wire

- 2-wire circuit

- other wires - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

Diameter

- Ø 6,0 mm

- Ø 8,0 mm

- other diameter - acc. to customer’s request

Material

1.4571

Type

- with kink protection

- without kink protection

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

Highly flexible cables according to your special requirements
