CATLine CAT 5e R flex

halogen-free, continuously flexible CAT 5e Industrial Ethernet Cables for Railway Technology

Marking for 1569-2435:
SAB BRÖCKSKES · D-VIERSEN · Catline CAT 5e R flex 2x2x24AWG 1569-2435 CE

Marking for 1569-2435: SAB BRÖCKSKES · D-VIERSEN · Catline CAT 5e R flex 2x2x24AWG 1569-2435 CE

Application

This flexible CAT 5e industrial ethernet cable is especially for use in rail vehicles and protected installation in the interior for door control or in protecting tubes for outdoor laying at the bogie. The category 5e cable is appropriate for light and medium mechanical stress.

Outstanding features

  • continuously flexible
  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • good oil and fuel resistance
  • good ozone, UV and weather resistance
  • good acid and alkalines resistance
  • good against aggressive chemicals
  • suitable for outdoor installation
  • fulfils fire protection requirements R15 (EL1A) and R16 (EL1B) acc. to EN 45545-2 for hazard levels HL1-3
  • flame retardant acc. to UN/ECE R118

Additional information

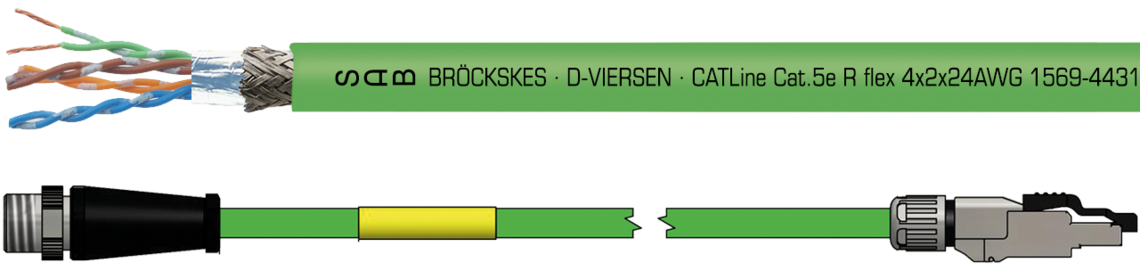

 also possible as harnessed cable with M12 or RJ 45 plug


Construction

Dimension

1569-2435: 2 x 2 x 24 AWG

1569-2235: 2 x 2 x 22 AWG

1569-4431: 4 x 2 x 24 AWG

1569-4631: 4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special SABIX®

Colour code

1569-2435: blue, yellow, white, orange

1569-2235: blue, yellow, white, orange

1569-4431: white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

1569-4631: white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

1569-2435: star quad

1569-2235: star quad

1569-4431: cores twisted to pairs, pairs together

1569-4631: cores twisted to pairs, pairs together

Wrapping

foil

Screen

alu foil and tinned copper braiding

Sheath material

special SABIX®

Sheath colour

green (similar RAL 6018)

Dimension

1569-2435: 2 x 2 x 24 AWG

1569-2235: 2 x 2 x 22 AWG

1569-4431: 4 x 2 x 24 AWG

1569-4631: 4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special SABIX®

Colour code

1569-2435: blue, yellow, white, orange

1569-2235: blue, yellow, white, orange

1569-4431: white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

1569-4631: white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

1569-2435: star quad

1569-2235: star quad

1569-4431: cores twisted to pairs, pairs together

1569-4631: cores twisted to pairs, pairs together

Wrapping

foil

Screen

alu foil and tinned copper braiding

Sheath material

special SABIX®

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

continuously flexible: 15 x d

Temperature range VDE

fixed laying: - 50°C / + 90°C

flexible application: - 40°C / + 90°C

Halogen-free

acc. to EN 50306-1 + EN 50264-1.

Development of HCl is ≤ 0,5% acc. to IEC 60754-1.

pH-value is ≥ 4,3 acc. to IEC 60754-2.

Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content ≤ 0,1% acc. to IEC 60684-2

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant

acc. to ISO 6722 (UN/ECE R118)

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to EN 50305 + VDE 0260-305

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Characteristic impedance

1569-2431 and 1569-2231: 100Ω ± 5Ω with reference to EN 50288-2-2 / CAT 5

1569-4431 and 1569-4631: 100Ω ± 10Ω with reference to EN 50288-2-2 / CAT 5

Flexibility

very good

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

continuously flexible: 15 x d

Temperature range VDE

fixed laying: - 50°C / + 90°C

flexible application: - 40°C / + 90°C

Halogen-free

acc. to EN 50306-1 + EN 50264-1.

Development of HCl is ≤ 0,5% acc. to IEC 60754-1.

pH-value is ≥ 4,3 acc. to IEC 60754-2.

Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content ≤ 0,1% acc. to IEC 60684-2

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant

acc. to ISO 6722 (UN/ECE R118)

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to EN 50305 + VDE 0260-305

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Characteristic impedance

1569-2431 and 1569-2231: 100Ω ± 5Ω with reference to EN 50288-2-2 / CAT 5

1569-4431 and 1569-4631: 100Ω ± 10Ω with reference to EN 50288-2-2 / CAT 5

Flexibility

very good

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø Copper figure Cable weight ≈
L156924352 x 2 x 24 AWG1,25 mm5,1 mm22,8 kg/km40 kg/km Send inquiry
L156922352 x 2 x 22 AWG1,55 mm5,8 mm29,2 kg/km53 kg/km Send inquiry
L156944314 x 2 x 24 AWG1,29 mm7,8 mm42,3 kg/km81 kg/km Send inquiry
L156946314 x 2 x 26 AWG0,99 mm6,5 mm29,7 kg/km55 kg/km Send inquiry
item no.
Dimension
max. core-ø
Outer-ø
Copper figure
Cable weight ≈
L15692435
2 x 2 x 24 AWG
1,25 mm
5,1 mm
22,8 kg/km
40 kg/km
L15692235
2 x 2 x 22 AWG
1,55 mm
5,8 mm
29,2 kg/km
53 kg/km
L15694431
4 x 2 x 24 AWG
1,29 mm
7,8 mm
42,3 kg/km
81 kg/km
L15694631
4 x 2 x 26 AWG
0,99 mm
6,5 mm
29,7 kg/km
55 kg/km

Other dimensions and colours are possible on request.
