CATLine CAT 5e R

halogen-free Industrial Ethernet Cables for Railway Technology

Marking for CATLine CAT 5e R 15674421: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.5e R 4x2x24AWG 1567-4421 CE

Marking for CATLine CAT 5e R 15674421: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.5e R 4x2x24AWG 1567-4421 CE

Application

The CAT 5e data cable according to EN 45545-2 is especially suitable for use in rail vehicles. The halogen-free cable meets the fire protection requirements R15 (EL1A) according to EN 45545-2 for the hazard levels HL1-3.

Especially for use in rail vehicles.

Outstanding features

  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • good against aggressive chemicals
  • fulfils fire protection requirements R15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3
  • flame retardant acc. to UN/ECE R118

Additional information

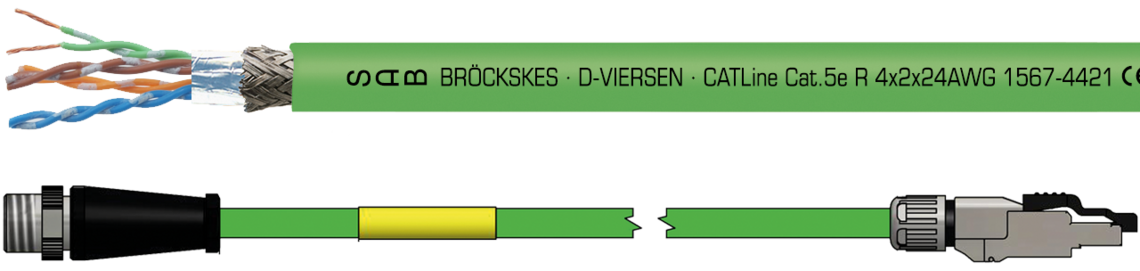

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Dimension

2 x 2 x 24 AWG

2 x 2 x 22 AWG

4 x 2 x 24 AWG

2 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

PE

Colour code

2 x 2 x 24 AWG and 2 x 2 x 22 AWG:

blue, yellow, white, orange



4 x 2 x 24 AWG:

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

2 x 2 x 24 AWG and 2 x 2 x 22 AWG: star quad

4 x 2 x 24 AWG: cores twisted to pairs, pairs together

Wrapping

foil

Screen

alu foil and tinned copper braiding

Sheath material

Special SABIX®

Sheath colour

green (similar RAL 6018)

Dimension

2 x 2 x 24 AWG

2 x 2 x 22 AWG

4 x 2 x 24 AWG

2 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

PE

Colour code

2 x 2 x 24 AWG and 2 x 2 x 22 AWG:

blue, yellow, white, orange



4 x 2 x 24 AWG:

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

2 x 2 x 24 AWG and 2 x 2 x 22 AWG: star quad

4 x 2 x 24 AWG: cores twisted to pairs, pairs together

Wrapping

foil

Screen

alu foil and tinned copper braiding

Sheath material

Special SABIX®

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

max. 90 V

Testing voltage

core/core 7500 V

core/screen 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

fixed laying: -40/+70°C

flexible application: -30/+70°C

Halogen-free

acc. to EN 50306-1 + EN 50264-1.

Development of HCl is ≤ 0,5% acc. to IEC 60754-1.

pH-value is ≥ 4,3 acc. to IEC 60754-2.

Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content ≤ 0,1% acc. to IEC 60684-2

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant

acc. to ISO 6722 (UN/ECE R118)

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to EN 50305 + VDE 0260-305

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency

with reference to EN 50288-2-2 / CAT 5

Flexibility

good

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Testing voltage

core/core 7500 V

core/screen 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

fixed laying: -40/+70°C

flexible application: -30/+70°C

Halogen-free

acc. to EN 50306-1 + EN 50264-1.

Development of HCl is ≤ 0,5% acc. to IEC 60754-1.

pH-value is ≥ 4,3 acc. to IEC 60754-2.

Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content ≤ 0,1% acc. to IEC 60684-2

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant

acc. to ISO 6722 (UN/ECE R118)

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to EN 50305 + VDE 0260-305

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency

with reference to EN 50288-2-2 / CAT 5

Flexibility

good

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø Copper figure Cable weight ≈
L156726252 x 2 x 26 AWG1,05 mm4,0 ± 5% mm16,4 kg/km25 kg/km Send inquiry
L156790022 x 2 x 24 AWG1,30 mm5,2 ± 5% mm22,7 kg/km41 kg/km Send inquiry
L156790042 x 2 x 22 AWG1,60 mm5,9 ± 5% mm29,1 kg/km52 kg/km Send inquiry
L156744214 x 2 x 24 AWG1,30 mm8,0 ± 10% mm41,2 kg/km70 kg/km Send inquiry
item no.
Dimension
max. core-ø
Outer-ø
Copper figure
Cable weight ≈
L15672625
2 x 2 x 26 AWG
1,05 mm
4,0 ± 5% mm
16,4 kg/km
25 kg/km
L15679002
2 x 2 x 24 AWG
1,30 mm
5,2 ± 5% mm
22,7 kg/km
41 kg/km
L15679004
2 x 2 x 22 AWG
1,60 mm
5,9 ± 5% mm
29,1 kg/km
52 kg/km
L15674421
4 x 2 x 24 AWG
1,30 mm
8,0 ± 10% mm
41,2 kg/km
70 kg/km

Other dimensions and colours are possible on request.
