CATLine CAT 6A R

halogen-free Industrial Ethernet Cables for Railway Technology

Marking for CATLine CAT 6A R 16674621: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.6A R 4x2x26AWG 1667-4621 CE

Marking for CATLine CAT 6A R 16674621: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.6A R 4x2x26AWG 1667-4621 CE

Application

The CAT 6 A data cable according to EN 45545-2 is especially suitable for use in rail vehicles. The cable is halogen-free, flame retardant and self-extinguishing.

Especially for use in rail vehicles.

Outstanding features

  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • good against aggressive chemicals
  • fulfils fire protection requirements R15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3
  • flame retardant acc. to UN/ECE R118

Additional information

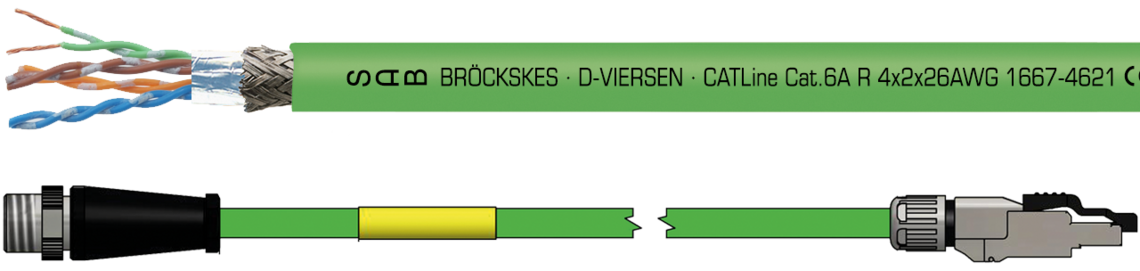

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Conductor

bare copper strands, fine wires

Insulation

PE

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs together

Wrapping

foil

Screen

alu foil and tinned copper braiding

Sheath material

Special SABIX®

Sheath colour

green (similar RAL 6018)

Conductor

bare copper strands, fine wires

Insulation

PE

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs together

Wrapping

foil

Screen

alu foil and tinned copper braiding

Sheath material

Special SABIX®

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

max. 90 V

Testing voltage

core/core: 750 V

core/screen: 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

fixed laying: -40/+70°C

flexible application: -30/+70 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1.

Development of HCl is ≤ 0,5% acc. to IEC 60754-1.

pH-value is ≥ 4,3 acc. to IEC 60754-2.

Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content ≤ 0,1% acc. to IEC 60684-2

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant

acc. to ISO 6722 (UN/ECE R118)

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to EN 50305 + VDE 0260-305

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency

with reference to EN 50288-10-2 / CAT 6A

Flexibility

good

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Testing voltage

core/core: 750 V

core/screen: 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

fixed laying: -40/+70°C

flexible application: -30/+70 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1.

Development of HCl is ≤ 0,5% acc. to IEC 60754-1.

pH-value is ≥ 4,3 acc. to IEC 60754-2.

Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content ≤ 0,1% acc. to IEC 60684-2

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant

acc. to ISO 6722 (UN/ECE R118)

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to EN 50305 + VDE 0260-305

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency

with reference to EN 50288-10-2 / CAT 6A

Flexibility

good

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø Copper figure Cable weight ≈
L166746214 x 2 x 26 AWG1,05 mm6,8 ± 10% mm31,9 kg/km55 kg/km Send inquiry
item no.
Dimension
max. core-ø
Outer-ø
Copper figure
Cable weight ≈
L16674621
4 x 2 x 26 AWG
1,05 mm
6,8 ± 10% mm
31,9 kg/km
55 kg/km

Other dimensions and colours are possible on request.
