SL 834 C

Low capacity PUR motor connection cable with overall copper screen 0,6/1 kV

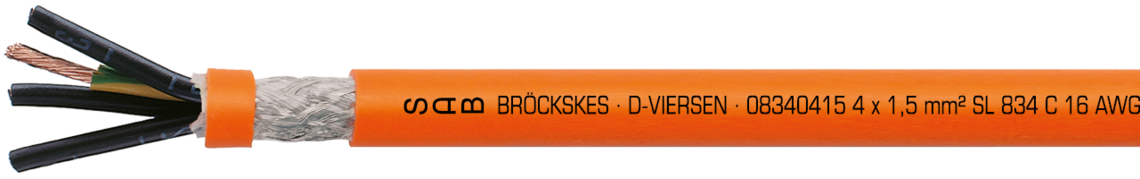

Marking for SL 834 C 08340415: SAB BBRÖCKSKES · D-VIERSEN · 08340415 4G1,5 mm² SL 834 C 16 AWG/4c 1000V 08341604 DESINA UL AWM Style 20235 80°C CSA AWM I/II A/B 80°C 1000V FT1 FT2 CE

Marking for SL 834 C 08340415: SAB BBRÖCKSKES · D-VIERSEN · 08340415 4G1,5 mm² SL 834 C 16 AWG/4c 1000V 08341604 DESINA UL AWM Style 20235 80°C CSA AWM I/II A/B 80°C 1000V FT1 FT2 CE

Application

PUR Motor Power Supply Cable 0,6/1 kV with low capacity construction, UL regognized & CSA approved.

Outstanding features

    ●    UL recognized, CSA approval
    ●    low capacity construction
    ●    very good EMC characteristics
    ●    halogen-free
    ●    very high flexibility
    ●    suitable for cable tracks
    ●    very good oil resistance
    ●    very long service life
    ●    adhesion-free installation
    ●    PWIS uncritical (PWIS= paint-wetting impairment substances)
    ●    flexible at low temperatures
    ●    DESINA® colours

Additional information

for DNC motors on frequency converters

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special Polymer

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

PUR

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special Polymer

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

PUR

Sheath colour

orange (RAL 2003)

Technical data

Nominal voltage

Uo/U 0.6/1 kV

Voltage UL/CSA

1000 V

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

UL/CSA up to +80 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL FT1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0.6/1 kV

Voltage UL/CSA

1000 V

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

UL/CSA up to +80 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL FT1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L083404154 x 1,50 mm²0,16 mm9,0 mm83,5 kg/km126 kg/km Send inquiry
L083404254 x 2,50 mm²0,16 mm10,8 mm142,5 kg/km195 kg/km Send inquiry
L083404404 x 4,00 mm²0,16 mm12,4 mm206,5 kg/km270 kg/km Send inquiry
L083404604 x 6,00 mm²0,21 mm15,4 mm298,1 kg/km398 kg/km Send inquiry
L083404704 x 10,0 mm²0,21 mm17,6 mm494,7 kg/km604 kg/km Send inquiry
L083404804 x 16,0 mm²0,21 mm22,7 mm749,7 kg/km953 kg/km Send inquiry
L083404904 x 25,0 mm²0,21 mm25,6 mm1119,8 kg/km1303 kg/km Send inquiry
L083404954 x 35,0 mm²0,21 mm28,9 mm1532,9 kg/km1750 kg/km Send inquiry
L083404964 x 50,0 mm²0,31 mm34,5 mm2144,5 kg/km2486 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L08340415
4 x 1,50 mm²
0,16 mm
9,0 mm
83,5 kg/km
126 kg/km
L08340425
4 x 2,50 mm²
0,16 mm
10,8 mm
142,5 kg/km
195 kg/km
L08340440
4 x 4,00 mm²
0,16 mm
12,4 mm
206,5 kg/km
270 kg/km
L08340460
4 x 6,00 mm²
0,21 mm
15,4 mm
298,1 kg/km
398 kg/km
L08340470
4 x 10,0 mm²
0,21 mm
17,6 mm
494,7 kg/km
604 kg/km
L08340480
4 x 16,0 mm²
0,21 mm
22,7 mm
749,7 kg/km
953 kg/km
L08340490
4 x 25,0 mm²
0,21 mm
25,6 mm
1119,8 kg/km
1303 kg/km
L08340495
4 x 35,0 mm²
0,21 mm
28,9 mm
1532,9 kg/km
1750 kg/km
L08340496
4 x 50,0 mm²
0,31 mm
34,5 mm
2144,5 kg/km
2486 kg/km

Other dimensions and colours are possible on request.
