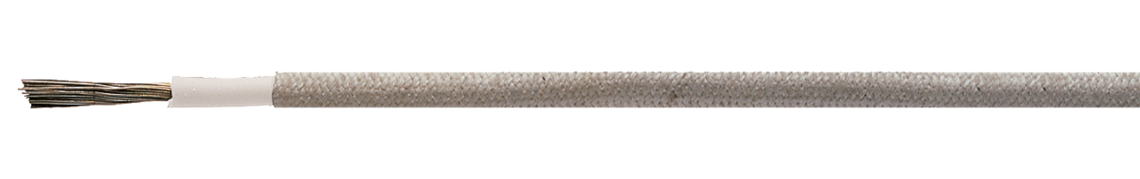

05SJ-K
Silicone (Besilen®) insulated strands with fibre-glass braiding
Application
05SJ-K is halogen-free, flexible silicone insulated strands with fibre-glass braiding with reference to DIN EN 50525-2-41. Moreover, it is used for applications at ambient temperatures higher than +55°C, for internal wiring of e.g. lamps and illuminations, heating appliances, household, kitchen, and laboratory appliances, electric machines, switchboard plants and distributors, and medical appliances.
Outstanding features
- flexible
- halogen-free
- flexible at low temperatures
- heat resistant
- PFAS-free
Construction
| Conductor | tinned copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1 |
| Standard colour | nature |
| Braiding | fibre-glass |
| Impregnation | impregnating lacquer |
tinned copper strands acc. to IEC 60228, VDE 0295, class 5
Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
nature
fibre-glass
impregnating lacquer
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | 2000 V |
| Min. bending radius | 7,5 x d |
| Radiation resistance | 2 x 10^7 cJ/kg |
| Temperature range | fixed laying: -40/+180°C flexible application: -25/+180°C short-time use: +250°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
2000 V
7,5 x d
2 x 10^7 cJ/kg
fixed laying: -40/+180°C
flexible application: -25/+180°C
short-time use: +250°C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to RoHS directive of the European Union
Dimensions
| item no. |
Nominal cross section |
Largest single wire-ø | Copper figure | Cable weight ≈ |
Outer-ø ± 10% | |
|---|---|---|---|---|---|---|
| L01550059 | 0,5 mm² | 0,21 mm | 4,8 kg/km | 14 kg/km | 2,7 mm | Send inquiry |
| L01550079 | 0,75 mm² | 0,21 mm | 7,2 kg/km | 17 kg/km | 3 mm | Send inquiry |
| L01550109 | 1 mm² | 0,21 mm | 9,6 kg/km | 19 kg/km | 3,1 mm | Send inquiry |
| L01550159 | 1,5 mm² | 0,26 mm | 14,4 kg/km | 25 kg/km | 3,5 mm | Send inquiry |
| L01550259 | 2,5 mm² | 0,26 mm | 24 kg/km | 35 kg/km | 4,2 mm | Send inquiry |
| L01550409 | 4 mm² | 0,31 mm | 38,4 kg/km | 50 kg/km | 4,8 mm | Send inquiry |
| L01550609 | 6 mm² | 0,31 mm | 57,6 kg/km | 60 kg/km | 5,3 mm | Send inquiry |
| L01551009 | 10 mm² | 0,41 mm | 96 kg/km | 120 kg/km | 6,4 mm | Send inquiry |
| L01551609 | 16 mm² | 0,41 mm | 153,6 kg/km | 178 kg/km | 8,3 mm | Send inquiry |
| L01552509 | 25 mm² | 0,41 mm | 240 kg/km | 281 kg/km | 10,1 mm | Send inquiry |
| L01553509 | 35 mm² | 0,41 mm | 336 kg/km | 388 kg/km | 11,5 mm | Send inquiry |
| L01555009 | 50 mm² | 0,41 mm | 480 kg/km | 537 kg/km | 13,1 mm | Send inquiry |
| L01557009 | 70 mm² | 0,41 mm | 672 kg/km | 721 kg/km | 15,4 mm | Send inquiry |
| L01559509 | 95 mm² | 0,51 mm | 912 kg/km | 963 kg/km | 18 mm | Send inquiry |
section
wire-ø
± 10%
Other dimensions and colours are possible on request.
