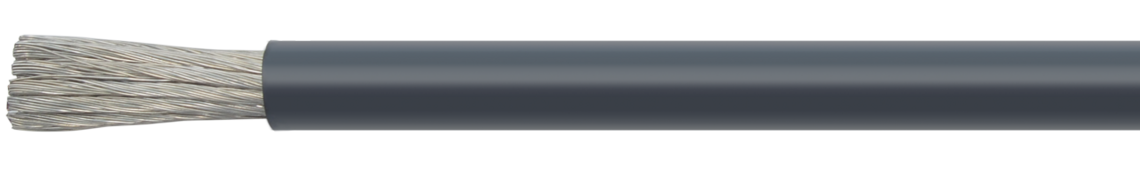

Silicone (Besilen®) insulated strands 0.6/1 kV

Application

These insulated strands with 0,6/1 kV are for example used in switchboards and distributors, in industrial furnaces and textile machine construction as well as in railway technology. Equally they are applied as connection of battery system or energy storage.

Outstanding features

  • halogen-free
  • heat resistant
  • flexible at low temperatures

Additional information

On request with UL recognition!



Colour code for single conductors:

0 = green-yellow    4 = grey
1 = blue                   5 = white
2 = black                 6 = reddish brown
3 = brown                7 = red

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

4000 V

Current-carrying capacity

acc. to VDE 0298-4

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

4000 V

Current-carrying capacity

acc. to VDE 0298-4

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
0118 .. 50*0,5 mm²0,21 mm2,5 mm4,8 kg/km10 kg/km Send inquiry
0118 .. 75*0,75 mm²0,21 mm2,8 mm7,2 kg/km13 kg/km Send inquiry
0118 .. 80*1 mm²0,21 mm2,9 mm9,6 kg/km16 kg/km Send inquiry
0118 .. 82*1,5 mm²0,26 mm3,2 mm14,4 kg/km20 kg/km Send inquiry
0118 .. 84*2,5 mm²0,26 mm3,8 mm24 kg/km31 kg/km Send inquiry
0118 .. 86*4 mm²0,31 mm4,6 mm38,4 kg/km48 kg/km Send inquiry
0118 .. 87*6 mm²0,31 mm5,1 mm57,6 kg/km66 kg/km Send inquiry
0118 .. 88*10 mm²0,41 mm6,7 mm96 kg/km113 kg/km Send inquiry
0118 .. 89*16 mm²0,41 mm8,1 mm153,6 kg/km171 kg/km Send inquiry
0118 .. 90*25 mm²0,41 mm9,9 mm240 kg/km262 kg/km Send inquiry
0118 .. 91*35 mm²0,41 mm11,3 mm336 kg/km361 kg/km Send inquiry
0118 .. 92*50 mm²0,41 mm12,9 mm480 kg/km527 kg/km Send inquiry
0118 .. 93*70 mm²0,41 mm15,2 mm672 kg/km696 kg/km Send inquiry
0118 .. 94*95 mm²0,51 mm17,7 mm912 kg/km948 kg/km Send inquiry
0118 .. 95*120 mm²0,51 mm19,6 mm1152 kg/km1161 kg/km Send inquiry
0118 .. 96*150 mm²0,51 mm21,5 mm1440 kg/km1452 kg/km Send inquiry
0118 .. 97*185 mm²0,51 mm23,6 mm1776 kg/km1776 kg/km Send inquiry
0118 .. 98*240 mm²0,51 mm27,3 mm2304 kg/km2378 kg/km Send inquiry
0118 .. 99*300 mm²0,51 mm304 mm2880 kg/km2963 kg/km Send inquiry
item no.
Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
0118 .. 50*
0,5 mm²
0,21 mm
2,5 mm
4,8 kg/km
10 kg/km
0118 .. 75*
0,75 mm²
0,21 mm
2,8 mm
7,2 kg/km
13 kg/km
0118 .. 80*
1 mm²
0,21 mm
2,9 mm
9,6 kg/km
16 kg/km
0118 .. 82*
1,5 mm²
0,26 mm
3,2 mm
14,4 kg/km
20 kg/km
0118 .. 84*
2,5 mm²
0,26 mm
3,8 mm
24 kg/km
31 kg/km
0118 .. 86*
4 mm²
0,31 mm
4,6 mm
38,4 kg/km
48 kg/km
0118 .. 87*
6 mm²
0,31 mm
5,1 mm
57,6 kg/km
66 kg/km
0118 .. 88*
10 mm²
0,41 mm
6,7 mm
96 kg/km
113 kg/km
0118 .. 89*
16 mm²
0,41 mm
8,1 mm
153,6 kg/km
171 kg/km
0118 .. 90*
25 mm²
0,41 mm
9,9 mm
240 kg/km
262 kg/km
0118 .. 91*
35 mm²
0,41 mm
11,3 mm
336 kg/km
361 kg/km
0118 .. 92*
50 mm²
0,41 mm
12,9 mm
480 kg/km
527 kg/km
0118 .. 93*
70 mm²
0,41 mm
15,2 mm
672 kg/km
696 kg/km
0118 .. 94*
95 mm²
0,51 mm
17,7 mm
912 kg/km
948 kg/km
0118 .. 95*
120 mm²
0,51 mm
19,6 mm
1152 kg/km
1161 kg/km
0118 .. 96*
150 mm²
0,51 mm
21,5 mm
1440 kg/km
1452 kg/km
0118 .. 97*
185 mm²
0,51 mm
23,6 mm
1776 kg/km
1776 kg/km
0118 .. 98*
240 mm²
0,51 mm
27,3 mm
2304 kg/km
2378 kg/km
0118 .. 99*
300 mm²
0,51 mm
304 mm
2880 kg/km
2963 kg/km

Other dimensions and colours are possible on request.
