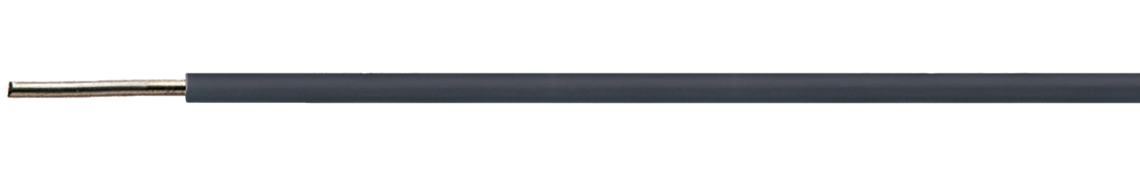

BiA

Silicone (Besilen®) insulated wire

Application

The silicone insulated wire BiA is halogen-free and heat resistant. Moreover, it is flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2. It is applied for internal wiring in lamps, appliances, switchboard plants and distributors in industries such as industrial oven construction, smelteries, steelworks and hot-rolling mills, cement, glass, ceramic, and plastics processing and electric industries.

Outstanding features

  • halogen-free
  • heat resistant

Additional information

Colour code for single conductors:

0 = green-yellow     4 = grey
1 = blue                   5 = white
2 = black                 6 = reddish brown
3 = brown                7 = red

Construction

Conductor

solid tinned copper wire acc. to IEC 60228, VDE 0295, class 1

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Conductor

solid tinned copper wire acc. to IEC 60228, VDE 0295, class 1

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Technical data

Nominal voltage

Uo/U 300/300 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/300 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
nominal wire-ø Outer-ø ± 5% Copper figure Cable weight ≈
0111005…*0,5 mm²0,8 mm1,8 mm4,8 kg/km8 kg/km Send inquiry
0111007…*0,75 mm²0,98 mm2 mm7,2 kg/km10 kg/km Send inquiry
0111010…*1 mm²1,13 mm2,1 mm9,6 kg/km13 kg/km Send inquiry
0111015…*1,5 mm²1,38 mm2,6 mm14,4 kg/km19 kg/km Send inquiry
0111025…*2,5 mm²1,78 mm3,2 mm24 kg/km31 kg/km Send inquiry
0111040…*4 mm²2,26 mm3,7 mm38,4 kg/km47 kg/km Send inquiry
0111060…*6 mm²2,76 mm4,2 mm57,6 kg/km67 kg/km Send inquiry
0111100…*10 mm²3,57 mm5,6 mm96 kg/km114 kg/km Send inquiry
item no.
Nominal cross
section
nominal wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
0111005…*
0,5 mm²
0,8 mm
1,8 mm
4,8 kg/km
8 kg/km
0111007…*
0,75 mm²
0,98 mm
2 mm
7,2 kg/km
10 kg/km
0111010…*
1 mm²
1,13 mm
2,1 mm
9,6 kg/km
13 kg/km
0111015…*
1,5 mm²
1,38 mm
2,6 mm
14,4 kg/km
19 kg/km
0111025…*
2,5 mm²
1,78 mm
3,2 mm
24 kg/km
31 kg/km
0111040…*
4 mm²
2,26 mm
3,7 mm
38,4 kg/km
47 kg/km
0111060…*
6 mm²
2,76 mm
4,2 mm
57,6 kg/km
67 kg/km
0111100…*
10 mm²
3,57 mm
5,6 mm
96 kg/km
114 kg/km

Other dimensions and colours are possible on request.
