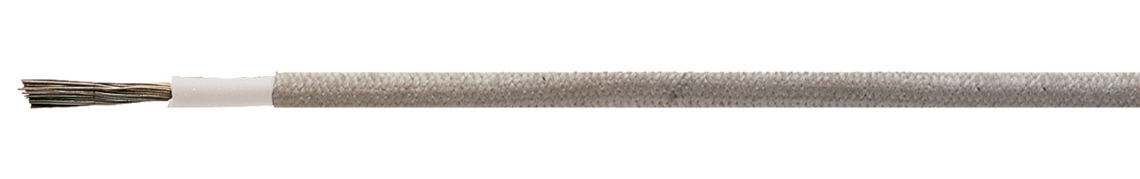

BiAF/GL

Silicone (Besilen®) insulated strands with fibre-glass braiding

Application

BiAF/ GL is silicone insulated strands with fibre-glass braiding. Moreover, they are used for applications at ambient temperatures higher than +55°C, for internal wiring of e.g. lamps and illuminations, heating appliances, household, kitchen, and laboratory appliances, electric machines, switchboard plants and distributors, and medical appliances.

Outstanding features

  • halogen-free
  • flexible at low temperatures
  • heat resistant
  • flexible

Construction

Conductor

tinned copper strands

acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Standard colour

white

Braiding

fibre-glass

Impregnation

impregnating lacquer

Conductor

tinned copper strands

acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Standard colour

white

Braiding

fibre-glass

Impregnation

impregnating lacquer

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L012300500,50 mm²0,21 mm2,4 mm4,8 kg/km11 kg/km Send inquiry
L012300700,75 mm²0,21 mm2,7 mm7,2 kg/km13 kg/km Send inquiry
L012301001,00 mm²0,21 mm2,8 mm9,6 kg/km19 kg/km Send inquiry
L012301501,50 mm²0,26 mm3,3 mm14,4 kg/km21 kg/km Send inquiry
L012302502,50 mm²0,26 mm3,9 mm24 kg/km34 kg/km Send inquiry
L012304004,00 mm²0,31 mm4,5 mm38,4 kg/km48 kg/km Send inquiry
L012306006,00 mm²0,31 mm5,0 mm57,6 kg/km67 kg/km Send inquiry
L0123100010,00 mm²0,41 mm6,6 mm96,0 kg/km118 kg/km Send inquiry
L0123160016,00 mm²0,41 mm8,0 mm153,6 kg/km178 kg/km Send inquiry
L0123250025,00 mm²0,41 mm9,8 mm240,0 kg/km276 kg/km Send inquiry
L0123350035,00 mm²0,41 mm11,2 mm336,0 kg/km379 kg/km Send inquiry
L0123500050,00 mm²0,41 mm12,0 mm480,0 kg/km535 kg/km Send inquiry
L0123700070,00 mm²0,41 mm15,1 mm672,0 kg/km710 kg/km Send inquiry
L0123950095,00 mm²0,51 mm17,6 mm912,0 kg/km976 kg/km Send inquiry
item no.
Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L01230050
0,50 mm²
0,21 mm
2,4 mm
4,8 kg/km
11 kg/km
L01230070
0,75 mm²
0,21 mm
2,7 mm
7,2 kg/km
13 kg/km
L01230100
1,00 mm²
0,21 mm
2,8 mm
9,6 kg/km
19 kg/km
L01230150
1,50 mm²
0,26 mm
3,3 mm
14,4 kg/km
21 kg/km
L01230250
2,50 mm²
0,26 mm
3,9 mm
24 kg/km
34 kg/km
L01230400
4,00 mm²
0,31 mm
4,5 mm
38,4 kg/km
48 kg/km
L01230600
6,00 mm²
0,31 mm
5,0 mm
57,6 kg/km
67 kg/km
L01231000
10,00 mm²
0,41 mm
6,6 mm
96,0 kg/km
118 kg/km
L01231600
16,00 mm²
0,41 mm
8,0 mm
153,6 kg/km
178 kg/km
L01232500
25,00 mm²
0,41 mm
9,8 mm
240,0 kg/km
276 kg/km
L01233500
35,00 mm²
0,41 mm
11,2 mm
336,0 kg/km
379 kg/km
L01235000
50,00 mm²
0,41 mm
12,0 mm
480,0 kg/km
535 kg/km
L01237000
70,00 mm²
0,41 mm
15,1 mm
672,0 kg/km
710 kg/km
L01239500
95,00 mm²
0,51 mm
17,6 mm
912,0 kg/km
976 kg/km

Other dimensions and colours are possible on request.
