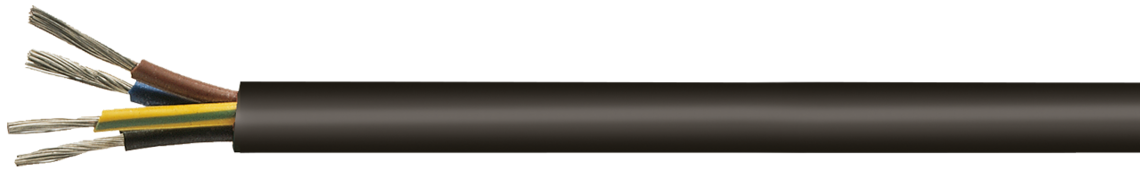

BiHF(K)-J

Silicone (Besilen®) insulated strands with extremely notch resistant Silicone (Besilen®) outer sheath

Application

BIHF(K)-J is silicone insulated strands with extremely notch resistant silicone outer sheath. It has an improved tear resistance and good sunlight resistance. It finds its application in plastics processing, packaging machine construction, smelteries, steelworks, and hot-rolling mills, safety technology, measuring and control technologies, cement, glass, and ceramic industries, refrigeration, heat and air conditioning technologies, power plants, and sauna construction.

Outstanding features

  • improved initial tear resistance
  • improved tear-growth resistance
  • extremely notch resistant
  • good sunlight resistance
  • halogen-free
  • flexible at low temperatures
  • heat resistant

Construction

Conductor

tinned copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to DIN EN 50363-1

Colour code

up to 5 cores coloured acc. to HD 308 (VDE 0293 part 308); from 6 cores black cores with consecutive numbers acc. to EN 50334; from 3 cores a green-yellow earth wire

Stranding

in layers

Sheath material

Besilen® notch resistant

Sheath colour

black (similar RAL 9011)

Conductor

tinned copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to DIN EN 50363-1

Colour code

up to 5 cores coloured acc. to HD 308 (VDE 0293 part 308); from 6 cores black cores with consecutive numbers acc. to EN 50334; from 3 cores a green-yellow earth wire

Stranding

in layers

Sheath material

Besilen® notch resistant

Sheath colour

black (similar RAL 9011)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to DIN VDE 0472 part 815 and IEC 60754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 and EN 60332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + EN 50267-2-2 + VDE 0482 part 267-2-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to DIN VDE 0472 part 815 and IEC 60754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 and EN 60332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + EN 50267-2-2 + VDE 0482 part 267-2-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
014502072 x 0,75 mm²0,21 mm5,4 mm14,4 kg/km40 kg/km Send inquiry
014503073 x 0,75 mm²0,21 mm5,7 mm21,6 kg/km49 kg/km Send inquiry
014504074 x 0,75 mm²0,21 mm6,2 mm28,8 kg/km59 kg/km Send inquiry
014505075 x 0,75 mm²0,21 mm6,9 mm36 kg/km71 kg/km Send inquiry
014507077 x 0,75 mm²0,21 mm7,7 mm50,4 kg/km96 kg/km Send inquiry
0145120712 x 0,75 mm²0,21 mm10,3 mm86,4 kg/km157 kg/km Send inquiry
014502102 x 1,00 mm²0,21 mm5,6 mm19,2 kg/km45 kg/km Send inquiry
014503103 x 1,00 mm²0,21 mm5,9 mm28,8 kg/km56 kg/km Send inquiry
014504104 x 1,00 mm²0,21 mm6,5 mm38,4 kg/km69 kg/km Send inquiry
014505105 x 1,00 mm²0,21 mm7,1 mm48 kg/km83 kg/km Send inquiry
014507107 x 1,00 mm²0,21 mm8 mm67,2 kg/km112 kg/km Send inquiry
0145121012 x 1,00 mm²0,21 mm10,7 mm115,2 kg/km185 kg/km Send inquiry
014502152 x 1,50 mm²0,26 mm6,6 mm28,8 kg/km64 kg/km Send inquiry
014503153 x 1,50 mm²0,26 mm7 mm43,2 kg/km79 kg/km Send inquiry
014504154 x 1,50 mm²0,26 mm7,8 mm57,6 kg/km101 kg/km Send inquiry
014505155 x 1,50 mm²0,26 mm8,6 mm72 kg/km121 kg/km Send inquiry
014507157 x 1,50 mm²0,26 mm9,4 mm100,8 kg/km158 kg/km Send inquiry
0145121512 x 1,50 mm²0,26 mm12,8 mm172,8 kg/km265 kg/km Send inquiry
0145181518 x 1,50 mm²0,26 mm15,4 mm259,2 kg/km391 kg/km Send inquiry
0145241524 x 1,50 mm²0,26 mm18,2 mm345,6 kg/km521 kg/km Send inquiry
0145251525 x 1,50 mm²0,26 mm18,6 mm360 kg/km540 kg/km Send inquiry
014502252 x 2,50 mm²0,26 mm8 mm48 kg/km97 kg/km Send inquiry
014503253 x 2,50 mm²0,26 mm8,5 mm72 kg/km122 kg/km Send inquiry
014504254 x 2,50 mm²0,26 mm9,3 mm96 kg/km151 kg/km Send inquiry
014505255 x 2,50 mm²0,26 mm10,6 mm120 kg/km191 kg/km Send inquiry
014506256 x 2,50 mm²0,26 mm11,6 mm144 kg/km223 kg/km Send inquiry
014507257 x 2,50 mm²0,26 mm11,6 mm168 kg/km250 kg/km Send inquiry
014503403 x 4,00 mm²0,31 mm10,2 mm115,2 kg/km184 kg/km Send inquiry
014504404 x 4,00 mm²0,31 mm11,1 mm153,6 kg/km228 kg/km Send inquiry
014505405 x 4,00 mm²0,31 mm12,5 mm192 kg/km280 kg/km Send inquiry
014507407 x 4,00 mm²0,31 mm13,6 mm268,8 kg/km369 kg/km Send inquiry
014503603 x 6,00 mm²0,31 mm11,4 mm172,8 kg/km251 kg/km Send inquiry
014504604 x 6,00 mm²0,31 mm12,5 mm230,4 kg/km315 kg/km Send inquiry
014505605 x 6,00 mm²0,31 mm13,8 mm288 kg/km381 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
01450207
2 x 0,75 mm²
0,21 mm
5,4 mm
14,4 kg/km
40 kg/km
01450307
3 x 0,75 mm²
0,21 mm
5,7 mm
21,6 kg/km
49 kg/km
01450407
4 x 0,75 mm²
0,21 mm
6,2 mm
28,8 kg/km
59 kg/km
01450507
5 x 0,75 mm²
0,21 mm
6,9 mm
36 kg/km
71 kg/km
01450707
7 x 0,75 mm²
0,21 mm
7,7 mm
50,4 kg/km
96 kg/km
01451207
12 x 0,75 mm²
0,21 mm
10,3 mm
86,4 kg/km
157 kg/km
01450210
2 x 1,00 mm²
0,21 mm
5,6 mm
19,2 kg/km
45 kg/km
01450310
3 x 1,00 mm²
0,21 mm
5,9 mm
28,8 kg/km
56 kg/km
01450410
4 x 1,00 mm²
0,21 mm
6,5 mm
38,4 kg/km
69 kg/km
01450510
5 x 1,00 mm²
0,21 mm
7,1 mm
48 kg/km
83 kg/km
01450710
7 x 1,00 mm²
0,21 mm
8 mm
67,2 kg/km
112 kg/km
01451210
12 x 1,00 mm²
0,21 mm
10,7 mm
115,2 kg/km
185 kg/km
01450215
2 x 1,50 mm²
0,26 mm
6,6 mm
28,8 kg/km
64 kg/km
01450315
3 x 1,50 mm²
0,26 mm
7 mm
43,2 kg/km
79 kg/km
01450415
4 x 1,50 mm²
0,26 mm
7,8 mm
57,6 kg/km
101 kg/km
01450515
5 x 1,50 mm²
0,26 mm
8,6 mm
72 kg/km
121 kg/km
01450715
7 x 1,50 mm²
0,26 mm
9,4 mm
100,8 kg/km
158 kg/km
01451215
12 x 1,50 mm²
0,26 mm
12,8 mm
172,8 kg/km
265 kg/km
01451815
18 x 1,50 mm²
0,26 mm
15,4 mm
259,2 kg/km
391 kg/km
01452415
24 x 1,50 mm²
0,26 mm
18,2 mm
345,6 kg/km
521 kg/km
01452515
25 x 1,50 mm²
0,26 mm
18,6 mm
360 kg/km
540 kg/km
01450225
2 x 2,50 mm²
0,26 mm
8 mm
48 kg/km
97 kg/km
01450325
3 x 2,50 mm²
0,26 mm
8,5 mm
72 kg/km
122 kg/km
01450425
4 x 2,50 mm²
0,26 mm
9,3 mm
96 kg/km
151 kg/km
01450525
5 x 2,50 mm²
0,26 mm
10,6 mm
120 kg/km
191 kg/km
01450625
6 x 2,50 mm²
0,26 mm
11,6 mm
144 kg/km
223 kg/km
01450725
7 x 2,50 mm²
0,26 mm
11,6 mm
168 kg/km
250 kg/km
01450340
3 x 4,00 mm²
0,31 mm
10,2 mm
115,2 kg/km
184 kg/km
01450440
4 x 4,00 mm²
0,31 mm
11,1 mm
153,6 kg/km
228 kg/km
01450540
5 x 4,00 mm²
0,31 mm
12,5 mm
192 kg/km
280 kg/km
01450740
7 x 4,00 mm²
0,31 mm
13,6 mm
268,8 kg/km
369 kg/km
01450360
3 x 6,00 mm²
0,31 mm
11,4 mm
172,8 kg/km
251 kg/km
01450460
4 x 6,00 mm²
0,31 mm
12,5 mm
230,4 kg/km
315 kg/km
01450560
5 x 6,00 mm²
0,31 mm
13,8 mm
288 kg/km
381 kg/km

Other dimensions and colours are possible on request.
