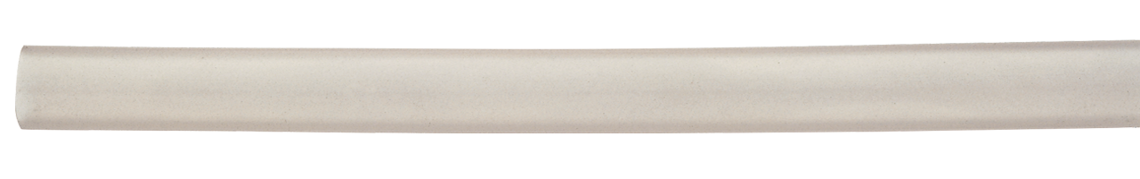

BiS

Insulating sleeve, non-fibrous

Application

BiS is a silicone insulating sleeve, non-fibrous that is halogen-free and heat resistant. It is especially designed for the insulation of connecting and soldering points and can be drawn over cables or conductors in lamps, heating appliances, and electrical plants.

Outstanding features

  • halogen-free
  • flexible at low temperatures
  • heat resistant

Technical data

Dielectric voltage

20 kV/mm

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dielectric voltage

20 kV/mm

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. inside diameter x
wall thickness
Outer-ø Cable weight ≈
010010041,0 x 0,40 mm1,8 mm2,2 kg/km Send inquiry
010015041,5 x 0,40 mm2,3 mm3 kg/km Send inquiry
010015061,5 x 0,60 mm2,7 mm5,7 kg/km Send inquiry
010020042,0 x 0,40 mm2,8 mm3,8 kg/km Send inquiry
010025042,5 x 0,40 mm3,3 mm4,7 kg/km Send inquiry
010030043,0 x 0,40 mm3,8 mm5,5 kg/km Send inquiry
010040054,0 x 0,50 mm5 mm8,9 kg/km Send inquiry
010040074,0 x 0,75 mm5,5 mm14,2 kg/km Send inquiry
010060096,0 x 0,90 mm7,8 mm23,5 kg/km Send inquiry
010070097,0 x 0,90 mm8,8 mm27 kg/km Send inquiry
010080108,0 x 1,00 mm10 mm34 kg/km Send inquiry
0100521010,0 x 1,00 mm12 mm44 kg/km Send inquiry
item no.
inside diameter x
wall thickness
Outer-ø
Cable weight ≈
01001004
1,0 x 0,40 mm
1,8 mm
2,2 kg/km
01001504
1,5 x 0,40 mm
2,3 mm
3 kg/km
01001506
1,5 x 0,60 mm
2,7 mm
5,7 kg/km
01002004
2,0 x 0,40 mm
2,8 mm
3,8 kg/km
01002504
2,5 x 0,40 mm
3,3 mm
4,7 kg/km
01003004
3,0 x 0,40 mm
3,8 mm
5,5 kg/km
01004005
4,0 x 0,50 mm
5 mm
8,9 kg/km
01004007
4,0 x 0,75 mm
5,5 mm
14,2 kg/km
01006009
6,0 x 0,90 mm
7,8 mm
23,5 kg/km
01007009
7,0 x 0,90 mm
8,8 mm
27 kg/km
01008010
8,0 x 1,00 mm
10 mm
34 kg/km
01005210
10,0 x 1,00 mm
12 mm
44 kg/km

Other dimensions and colours are possible on request.
