SAB Kabel

BiZ

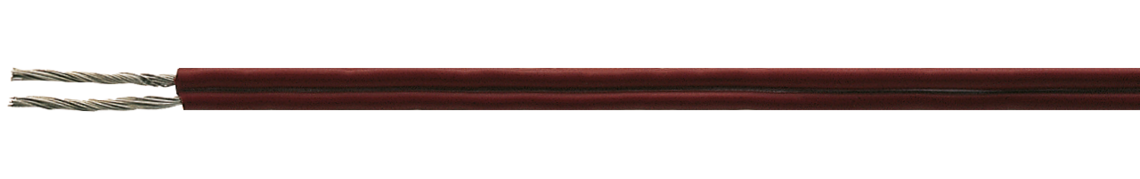

Twin cable

Application

The BiZ is a halogen-free, silicone twin cable that is flexible at low temperatures. It is especially applied in smelteries, steelworks, and hot-rolling mills, in cement, glass, and ceramic factories, or for the internal wiring of lamps and heating appliances.

Outstanding features

  • halogen-free
  • flexible at low temeperatures
  • heat resistant
  • EAC approval

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Sheath colour

reddish brown (similar RAL 3016)

Technical data

Nominal voltage

Uo/U 300/300 V

Testing voltage

1500 V

Min. bending radius

5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance
Weather resistance

very good

Dimensions

item no.
no. of cores x cross section
largest single wire-ø
dimension
copper figure
cable weight ca.
01020205
2 x 0,50 mm²
0,21 mm
4,2 mm x 2,1 mm
9,6 kg/km
17 kg/km
01020207
2 x 0,75 mm²
0,21 mm
4,8 mm x 2,4 mm
14,4 kg/km
23 kg/km
