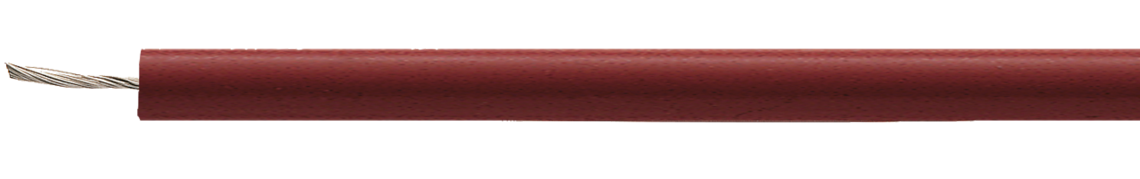

HZLBi

Silicone (Besilen®) high-voltage ignition cable

Application

HZLBi is a high-voltage silicone ignition cable that is halogen-free and heat resistant. Applications of ignition cables are at high and very unsteady ambient temperatures in lamp and illumination industries, e.g. for floodlight projectors or industrial lamps in electric heating engineering, in thermal and process technologies, and in refrigeration and air-conditioning industries.

Outstanding features

  • halogen-free
  • flexible at low temperatures
  • heat resistant
  • voltage-stable

Construction

Conductor

tinned copper strands 19 x 0,25 mm Ø

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Sheath colour

reddish brown (similar RAL 3016)

Conductor

tinned copper strands 19 x 0,25 mm Ø

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Sheath colour

reddish brown (similar RAL 3016)

Technical data

Testing voltage

5 mm ø: 15 kV

7 mm ø: 20 kV

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying:-40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Testing voltage

5 mm ø: 15 kV

7 mm ø: 20 kV

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying:-40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L010501021 mm²0,26 mm7 mm9,6 kg/km62 kg/km Send inquiry
L010501031 mm²0,26 mm5 mm9,6 kg/km35 kg/km Send inquiry
item no.
Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L01050102
1 mm²
0,26 mm
7 mm
9,6 kg/km
62 kg/km
L01050103
1 mm²
0,26 mm
5 mm
9,6 kg/km
35 kg/km

Other dimensions and colours are possible on request.
