SC 600 HDTRS

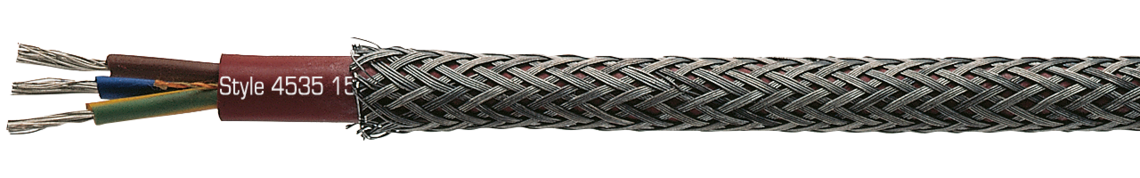

Besilen® insulated strands with Silicone (Besilen®) outer sheath and steel wire armouring, UL recognized, CSA approved

Marking for SC 600 HDTRS 01280310: SAB BRÖCKSKES · D-VIERSEN · SC 600 HDTR UL AWM Style 4535 150°C 60OV CSA AWM I/II A 150°C 600V FT1 FT2 CE

Download data sheet for SC 600 HDTRS

Questions about our products?

Application

SC 600 HDTRS with a Besilen® 722 insulation consists of silicone insulated strands with silicone outer sheath and steel wire armouring for mechanical protection. Moreover, the cable is fire resistant. It is applied in foundries, plastics processing, packaging and textile machine engineering, smelteries, steelworks, and hot-rolling mills, safety technology, measuring and control technologies, cement, glass, and ceramic industries, refrigeration, heat and air conditioning technologies, paper industry, and sauna construction.

Outstanding features

halogen-free
flexible at low temperatures
heat resistant
protection against mechanical damage
UL recognized, CSA approved

Construction

Conductor	tinned copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	Besilen®
Colour code	coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wireire
Stranding	in layers
Sheath material	Besilen® better than EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1
Sheath colour	reddish brown (similar RAL 3016)
Armouring	galvanized steel wire braiding

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen®

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wireire

Stranding

in layers

Sheath material

Besilen® better than EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Sheath colour

reddish brown (similar RAL 3016)

Armouring

galvanized steel wire braiding

Technical data

Nominal voltage	Uo/U 300/500 V
Voltage	UL + CSA: 600 V
Testing voltage	core/core 2000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	2 x 10^7 cJ/kg
Temperature range	UL/CSA: up to +150 °C Style 4535 DIN VDE: fixed laying: -40/+180 °C / +200 °C (2000 h) flexible application: -25/+180°C short-time use: +250°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, CSA FT1, FT2
Corrosiveness of conflagration gases	IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage

UL + CSA: 600 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

UL/CSA: up to +150 °C Style 4535

DIN VDE:

fixed laying: -40/+180 °C / +200 °C (2000 h)

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

CSA FT1, FT2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L01280207	2 x 0,75 mm²	0,21 mm	6,9 mm	14,4 kg/km	66 kg/km	Send inquiry
L01280307	3 x 0,75 mm²	0,21 mm	7,2 mm	21,6 kg/km	75 kg/km	Send inquiry
L01280407	4 x 0,75 mm²	0,21 mm	7,7 mm	28,8 kg/km	86 kg/km	Send inquiry
L01280507	5 x 0,75 mm²	0,21 mm	8,4 mm	36 kg/km	104 kg/km	Send inquiry
L01280607	6 x 0,75 mm²	0,21 mm	9 mm	43,2 kg/km	116 kg/km	Send inquiry
L01280707	7 x 0,75 mm²	0,21 mm	9 mm	50,4 kg/km	125 kg/km	Send inquiry
L01280210	2 x 1,00 mm²	0,21 mm	7,1 mm	19,2 kg/km	72 kg/km	Send inquiry
L01280310	3 x 1,00 mm²	0,21 mm	7,4 mm	28,8 kg/km	83 kg/km	Send inquiry
L01280410	4 x 1,00 mm²	0,21 mm	8 mm	38,4 kg/km	97 kg/km	Send inquiry
L01280510	5 x 1,00 mm²	0,21 mm	8,6 mm	48 kg/km	116 kg/km	Send inquiry
L01280610	6 x 1,00 mm²	0,21 mm	9,3 mm	57,6 kg/km	131 kg/km	Send inquiry
L01280710	7 x 1,00 mm²	0,21 mm	9,3 mm	67,2 kg/km	142 kg/km	Send inquiry
L01280215	2 x 1,50 mm²	0,26 mm	7,9 mm	28,8 kg/km	89 kg/km	Send inquiry
L01280315	3 x 1,50 mm²	0,26 mm	8,3 mm	43,2 kg/km	109 kg/km	Send inquiry
L01280415	4 x 1,50 mm²	0,26 mm	8,8 mm	57,6 kg/km	126 kg/km	Send inquiry
L01280515	5 x 1,50 mm²	0,26 mm	9,7 mm	72 kg/km	148 kg/km	Send inquiry
L01280615	6 x 1,50 mm²	0,26 mm	10,5 mm	86,4 kg/km	173 kg/km	Send inquiry
L01280715	7 x 1,50 mm²	0,26 mm	10,5 mm	100,8 kg/km	190 kg/km	Send inquiry
L01280225	2 x 2,50 mm²	0,26 mm	9,3 mm	48 kg/km	128 kg/km	Send inquiry
L01280325	3 x 2,50 mm²	0,26 mm	9,8 mm	72 kg/km	153 kg/km	Send inquiry
L01280425	4 x 2,50 mm²	0,26 mm	10,6 mm	96 kg/km	188 kg/km	Send inquiry
L01280525	5 x 2,50 mm²	0,26 mm	11,9 mm	120 kg/km	226 kg/km	Send inquiry
L01280625	6 x 2,50 mm²	0,26 mm	12,9 mm	144 kg/km	259 kg/km	Send inquiry
L01280725	7 x 2,50 mm²	0,26 mm	12,9 mm	168 kg/km	286 kg/km	Send inquiry
L01280240	2 x 4,00 mm²	0,31 mm	10,5 mm	76,8 kg/km	170 kg/km	Send inquiry
L01280340	3 x 4,00 mm²	0,31 mm	11,4 mm	115,2 kg/km	219 kg/km	Send inquiry
L01280440	4 x 4,00 mm²	0,31 mm	12,4 mm	153,6 kg/km	264 kg/km	Send inquiry
L01280540	5 x 4,00 mm²	0,31 mm	13,7 mm	192 kg/km	327 kg/km	Send inquiry
L01280640	6 x 4,00 mm²	0,31 mm	14,9 mm	230,4 kg/km	376 kg/km	Send inquiry
L01280740	7 x 4,00 mm²	0,31 mm	14,9 mm	268,8 kg/km	417 kg/km	Send inquiry
L01280260	2 x 6,00 mm²	0,31 mm	12 mm	115,2 kg/km	234 kg/km	Send inquiry
L01280360	3 x 6,00 mm²	0,31 mm	12,7 mm	172,8 kg/km	288 kg/km	Send inquiry
L01280460	4 x 6,00 mm²	0,31 mm	13,8 mm	230,4 kg/km	363 kg/km	Send inquiry
L01280560	5 x 6,00 mm²	0,31 mm	15,1 mm	288 kg/km	429 kg/km	Send inquiry
