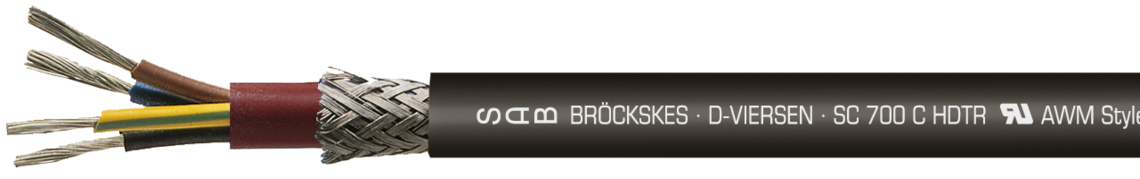

Besilen® insulated strands with overall copper screen and Besilen® outer sheath, UL/cUL recognized

< 10 mm2: nickel-plated copper strands

≥ 10 mm2: tinned copper strands

acc. to IEC 60228, VDE 0295, class 5

Besilen®

coloured acc. to (VDE 0293-308), from 3 cores a green-yellow earth wire, from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire

in layers

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

tinned copper braiding

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

black (similar RAL 9011)

Uo/U 300/500 V

600 V

core/core 2000 V

core/screen 2000 V

fixed laying: 5 x d

flexible application: 10 x d

2 x 10⁷ cJ/kg

UL/cUL: up to +200 °C

fixed laying: DIN VDE: -40/+180 °C

flexible application: -25/+180 °C

short-time use: -25/+250 °C

acc. to IEC 60754-1 + VDE 0482-754-1

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, c(UL) FT1 + FT2

IEC 60754-2 + VDE 0482-754-2 no development of corrosive conflagration gases

acc. to RoHS directive of the European Union
