Festoon 716 CP

PUR cable with overall copper screen for flexible application in festoon systems

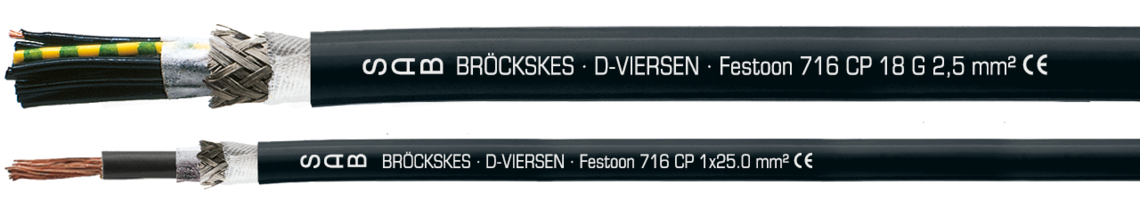

Marking for Festoon 716 CP 071601825: SAB BRÖCKSKES · D-VIERSEN · Festoon 716 CP 18 G 2,5 mm² CE

Marking for Festoon 716 CP 071601825: SAB BRÖCKSKES · D-VIERSEN · Festoon 716 CP 18 G 2,5 mm² CE

Application

Festoon system cable with overall copper screen for high mechanical stress. Moreover, this cable is particulary suitable for use in cable roller assemblies.

Outstanding features

  • very good EMV characteristics
  • halogen-free
  • high abrasion resistance
  • small outer diameter
  • path feet rate in cable roller assemblies up to 240 m/min.

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

TPE

Colour code

single core black, from 2 conductors coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire

Stranding

specially adjusted layering with a suspension unit (single core cables without a suspension unit)

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

TPE

Colour code

single core black, from 2 conductors coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire

Stranding

specially adjusted layering with a suspension unit (single core cables without a suspension unit)

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

7,5 x d

Continuous tensile load

max. 15 N/mm² acc. to DIN VDE 0298 part 3 section 7.1

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Continuous flexibility

very good

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

7,5 x d

Continuous tensile load

max. 15 N/mm² acc. to DIN VDE 0298 part 3 section 7.1

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Continuous flexibility

very good

Weather resistance

very good

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

071602152 x 1,50 mm²0,26 mm7,5 mm49,1 kg/km81 kg/km Send inquiry
071607157 G 1,50 mm²0,26 mm11,2 mm152,5 kg/km202 kg/km Send inquiry
0716121512 G 1,50 mm²0,26 mm13,3 mm234 kg/km286 kg/km Send inquiry
0716181518 G 1,50 mm²0,26 mm16,3 mm358,2 kg/km443 kg/km Send inquiry
071604254 G 2,50 mm²0,26 mm10,2 mm141,8 kg/km177 kg/km Send inquiry
071605255 G 2,50 mm²0,26 mm11,1 mm167,1 kg/km206 kg/km Send inquiry
0716122512 G 2,50 mm²0,26 mm15,7 mm356,9 kg/km424 kg/km Send inquiry
0716182518 G 2,50 mm²0,26 mm19 mm546,4 kg/km643 kg/km Send inquiry
071604404 G 4,00 mm²0,31 mm12,1 mm206,2 kg/km259 kg/km Send inquiry
071604604 G 6,00 mm²0,31 mm14,2 mm292,5 kg/km366 kg/km Send inquiry
071604614 G 10,00 mm²0,41 mm17,7 mm494,9 kg/km600 kg/km Send inquiry
071604624 G 16,00 mm²0,41 mm22 mm749,7 kg/km903 kg/km Send inquiry
071601631 x 25,00 mm²0,41 mm11 mm294 kg/km306 kg/km Send inquiry
071604634 G 25,00 mm²0,41 mm25,8 mm1121,8 kg/km1302 kg/km Send inquiry
071604644 G 35,00 mm²0,41 mm29,8 mm1537,5 kg/km1790 kg/km Send inquiry
071601651 x 50,00 mm²0,41 mm14,6 mm577,2 kg/km607 kg/km Send inquiry
071604654 G 50,00 mm²0,41 mm33,4 mm2129,6 kg/km2460 kg/km Send inquiry
071601661 x 70,00 mm²0,41 mm17,1 mm783,1 kg/km802 kg/km Send inquiry
071601671 x 95,00 mm²0,51 mm20 mm1049,9 kg/km1095 kg/km Send inquiry
071601681 x 120,00 mm²0,51 mm21,9 mm1293,1 kg/km1311 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
07160215
2 x 1,50 mm²
0,26 mm
7,5 mm
49,1 kg/km
81 kg/km
07160715
7 G 1,50 mm²
0,26 mm
11,2 mm
152,5 kg/km
202 kg/km
07161215
12 G 1,50 mm²
0,26 mm
13,3 mm
234 kg/km
286 kg/km
07161815
18 G 1,50 mm²
0,26 mm
16,3 mm
358,2 kg/km
443 kg/km
07160425
4 G 2,50 mm²
0,26 mm
10,2 mm
141,8 kg/km
177 kg/km
07160525
5 G 2,50 mm²
0,26 mm
11,1 mm
167,1 kg/km
206 kg/km
07161225
12 G 2,50 mm²
0,26 mm
15,7 mm
356,9 kg/km
424 kg/km
07161825
18 G 2,50 mm²
0,26 mm
19 mm
546,4 kg/km
643 kg/km
07160440
4 G 4,00 mm²
0,31 mm
12,1 mm
206,2 kg/km
259 kg/km
07160460
4 G 6,00 mm²
0,31 mm
14,2 mm
292,5 kg/km
366 kg/km
07160461
4 G 10,00 mm²
0,41 mm
17,7 mm
494,9 kg/km
600 kg/km
07160462
4 G 16,00 mm²
0,41 mm
22 mm
749,7 kg/km
903 kg/km
07160163
1 x 25,00 mm²
0,41 mm
11 mm
294 kg/km
306 kg/km
07160463
4 G 25,00 mm²
0,41 mm
25,8 mm
1121,8 kg/km
1302 kg/km
07160464
4 G 35,00 mm²
0,41 mm
29,8 mm
1537,5 kg/km
1790 kg/km
07160165
1 x 50,00 mm²
0,41 mm
14,6 mm
577,2 kg/km
607 kg/km
07160465
4 G 50,00 mm²
0,41 mm
33,4 mm
2129,6 kg/km
2460 kg/km
07160166
1 x 70,00 mm²
0,41 mm
17,1 mm
783,1 kg/km
802 kg/km
07160167
1 x 95,00 mm²
0,51 mm
20 mm
1049,9 kg/km
1095 kg/km
07160168
1 x 120,00 mm²
0,51 mm
21,9 mm
1293,1 kg/km
1311 kg/km

Other dimensions and colours are possible on request.
