SAB 755 - Exploration

robust, highly flexible control and power supply cable

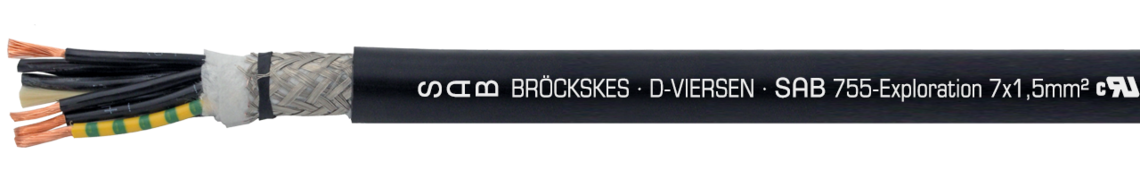

Marking for SAB 755 - Exploration 07550715: SAB BRÖCKSKES · D-VIERSEN · SAB 755-Exploration 7x1,5mm² cULus AWM Style 21233 80°C 1000V AWM I/II A/B 80°C 1000V FT1 FT2  0755-0715  CE

Marking for SAB 755 - Exploration 07550715: SAB BRÖCKSKES · D-VIERSEN · SAB 755-Exploration 7x1,5mm² cULus AWM Style 21233 80°C 1000V AWM I/II A/B 80°C 1000V FT1 FT2 0755-0715 CE

Application

Robust, highly flexible control and power supply cable for On-/ Offshore equipment for harsh environmental conditions for example at drilling rigs of oil and gas exploitation. The cable is used among others for the electrical connection of drilling equipment, compressor or pumps. ln the wet area of machine tools and production lines.

Outstanding features

  • UL/cUL recognized
  • large temperature range
  • small outer diameter
  • small cable weight
  • salt water resistant acc. to UL 1309
  • application in Topside Drilling-Loop

Additional information

Hybrid cable on request!

Construction

Conductor

bare copper strands

acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 5 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Screen

tinned copper braiding

Supporting screen

high-tech yarn

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

bare copper strands

acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 5 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Screen

tinned copper braiding

Supporting screen

high-tech yarn

Sheath material

PUR, TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Voltage UL/cUL

1000 V

Testing voltage

core/core 4000 V

core/screen 4000 V

Current-carrying capacity

acc. to VDE 0298-4

Min. bending radius

fixed laying: 6 x d

flexible application: 15 x d

Temperature range

UL/cUL: up to +80 °C

DIN VDE:

fixed laying: -50/+90 °C

flexible application*: -45/+90 °C

*protected installation in tubes with occasional movements.

Cold resistance

-50°C acc. to DIN EN 60811-506

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to

IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1 FT2

Oil resistance

very good - TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

MUD resistance

very good - acc. to

IEC 60092-350, IEC 61892-4, NEK TS 606

Tensile strength

max. 20 N/mm²

Sunlight resistance

acc. to HD 605 S1

Ozone resistance

acc. to DIN EN 50396

Salt water resistance

acc. to UL 1309

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Nominal voltage

Uo/U 0,6/1 kV

Voltage UL/cUL

1000 V

Testing voltage

core/core 4000 V

core/screen 4000 V

Current-carrying capacity

acc. to VDE 0298-4

Min. bending radius

fixed laying: 6 x d

flexible application: 15 x d

Temperature range

UL/cUL: up to +80 °C

DIN VDE:

fixed laying: -50/+90 °C

flexible application*: -45/+90 °C

*protected installation in tubes with occasional movements.

Cold resistance

-50°C acc. to DIN EN 60811-506

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to

IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1 FT2

Oil resistance

very good - TMPU

acc. to EN 50363-10-2 + VDE 0207-363-10-2

MUD resistance

very good - acc. to

IEC 60092-350, IEC 61892-4, NEK TS 606

Tensile strength

max. 20 N/mm²

Sunlight resistance

acc. to HD 605 S1

Ozone resistance

acc. to DIN EN 50396

Salt water resistance

acc. to UL 1309

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

075507157 x 1,50 mm²0,26 mm11,3 mm149 kg/km208 kg/km Send inquiry
0755121512 x 1,50 mm²0,26 mm13,2 mm232,5 kg/km288 kg/km Send inquiry
0755151515 x 1,50mm²0,26 mm15,2 mm313 kg/km387 kg/km Send inquiry
0755181518 x 1,50 mm²0,26 mm15,9 mm356,9 kg/km436 kg/km Send inquiry
0755251525 x 1,50 mm²0,26 mm19 mm472 kg/km575 kg/km Send inquiry
075505255 x 2,50 mm²0,26 mm11 mm179 kg/km221 kg/km Send inquiry
075507257 x 2,50 mm²0,26 mm13 mm228,9 kg/km295 kg/km Send inquiry
0755122512 x 2,50 mm²0,26 mm15,8 mm396,5 kg/km452 kg/km Send inquiry
075503403 x 4,00 mm²0,31 mm11,1 mm136,5 kg/km203 kg/km Send inquiry
075504404 x 4,00 mm²0,31 mm12,2 mm207,6 kg/km271 kg/km Send inquiry
075505405 x 4,00 mm²0,31 mm13,3 mm245,6 kg/km321 kg/km Send inquiry
075503603 x 6,00 mm²0,31 mm13,2 mm221,2 kg/km305 kg/km Send inquiry
075504604 x 6,00 mm²0,31 mm14,3 mm278,3 kg/km387 kg/km Send inquiry
075505605 x 6,00 mm²0,31 mm15,7 mm374,3 kg/km471 kg/km Send inquiry
075503613 x 10,0 mm²0,31 mm16,0 mm374,6 kg/km480 kg/km Send inquiry
075504614 x 10,0 mm²0,41 mm16,6 mm471,9 kg/km561 kg/km Send inquiry
075505615 x 10,0 mm²0,41 mm19,1 mm569,7 kg/km714 kg/km Send inquiry
075503623 x 16,0 mm²0,41 mm19,5 mm551 kg/km694 kg/km Send inquiry
075504624 x 16,0 mm²0,41 mm21,2 mm706,6 kg/km859 kg/km Send inquiry
075505625 x 16,0 mm²0,41 mm23,4 mm863,0 kg/km1061 kg/km Send inquiry
075503633 x 25,0 mm²0,41 mm22,9 mm813,8 kg/km1016 kg/km Send inquiry
075504634 x 25,0 mm²0,41 mm25 mm1056,6 kg/km1275 kg/km Send inquiry
075505635 x 25,0 mm²0,41 mm27,6 mm1300,3 kg/km1569 kg/km Send inquiry
075503643 x 35,0 mm²0,41 mm26,3 mm1106,4 kg/km1426 kg/km Send inquiry
075504644 x 35,0 mm²0,41 mm28,8 mm1455,1 kg/km1764 kg/km Send inquiry
075505645 x 35,0 mm²0,41 mm31,3 mm1797,8 kg/km2160 kg/km Send inquiry
075503653 x 50,0 mm²0,41 mm29,3 mm1551,3 kg/km1934 kg/km Send inquiry
075504654 x 50,0 mm²0,41 mm32,2 mm2037,3 kg/km2443 kg/km Send inquiry
075505655 x 50,0 mm²0,41 mm35,5 mm2531,9 kg/km3007 kg/km Send inquiry
075501641 x 35,0 mm²0,41 mm15,5 mm421,8 kg/km467 kg/km Send inquiry
075501651 x 50,0 mm²0,41 mm17,3 mm577,9 kg/km646 kg/km Send inquiry
075501661 x 70,0 mm²0,41 mm19,8 mm784 kg/km862 kg/km Send inquiry
075501671 x 95,0 mm²0,51 mm23,1 mm1051,5 kg/km1179 kg/km Send inquiry
075501681 x 120,0 mm²0,51 mm24,6 mm1318,2 kg/km1420 kg/km Send inquiry
075501691 x 150,0 mm²0,51 mm27 mm1611 kg/km1748 kg/km Send inquiry
075501701 x 185,0 mm²0,51 mm29 mm1952,1 kg/km2077 kg/km Send inquiry
075501711 x 240,0 mm²0,51 mm34,3 mm2493,2 kg/km2805 kg/km Send inquiry
075501721 x 300,0 mm²0,51 mm37,5 mm3077,6 kg/km3445 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
07550715
7 x 1,50 mm²
0,26 mm
11,3 mm
149 kg/km
208 kg/km
07551215
12 x 1,50 mm²
0,26 mm
13,2 mm
232,5 kg/km
288 kg/km
07551515
15 x 1,50mm²
0,26 mm
15,2 mm
313 kg/km
387 kg/km
07551815
18 x 1,50 mm²
0,26 mm
15,9 mm
356,9 kg/km
436 kg/km
07552515
25 x 1,50 mm²
0,26 mm
19 mm
472 kg/km
575 kg/km
07550525
5 x 2,50 mm²
0,26 mm
11 mm
179 kg/km
221 kg/km
07550725
7 x 2,50 mm²
0,26 mm
13 mm
228,9 kg/km
295 kg/km
07551225
12 x 2,50 mm²
0,26 mm
15,8 mm
396,5 kg/km
452 kg/km
07550340
3 x 4,00 mm²
0,31 mm
11,1 mm
136,5 kg/km
203 kg/km
07550440
4 x 4,00 mm²
0,31 mm
12,2 mm
207,6 kg/km
271 kg/km
07550540
5 x 4,00 mm²
0,31 mm
13,3 mm
245,6 kg/km
321 kg/km
07550360
3 x 6,00 mm²
0,31 mm
13,2 mm
221,2 kg/km
305 kg/km
07550460
4 x 6,00 mm²
0,31 mm
14,3 mm
278,3 kg/km
387 kg/km
07550560
5 x 6,00 mm²
0,31 mm
15,7 mm
374,3 kg/km
471 kg/km
07550361
3 x 10,0 mm²
0,31 mm
16,0 mm
374,6 kg/km
480 kg/km
07550461
4 x 10,0 mm²
0,41 mm
16,6 mm
471,9 kg/km
561 kg/km
07550561
5 x 10,0 mm²
0,41 mm
19,1 mm
569,7 kg/km
714 kg/km
07550362
3 x 16,0 mm²
0,41 mm
19,5 mm
551 kg/km
694 kg/km
07550462
4 x 16,0 mm²
0,41 mm
21,2 mm
706,6 kg/km
859 kg/km
07550562
5 x 16,0 mm²
0,41 mm
23,4 mm
863,0 kg/km
1061 kg/km
07550363
3 x 25,0 mm²
0,41 mm
22,9 mm
813,8 kg/km
1016 kg/km
07550463
4 x 25,0 mm²
0,41 mm
25 mm
1056,6 kg/km
1275 kg/km
07550563
5 x 25,0 mm²
0,41 mm
27,6 mm
1300,3 kg/km
1569 kg/km
07550364
3 x 35,0 mm²
0,41 mm
26,3 mm
1106,4 kg/km
1426 kg/km
07550464
4 x 35,0 mm²
0,41 mm
28,8 mm
1455,1 kg/km
1764 kg/km
07550564
5 x 35,0 mm²
0,41 mm
31,3 mm
1797,8 kg/km
2160 kg/km
07550365
3 x 50,0 mm²
0,41 mm
29,3 mm
1551,3 kg/km
1934 kg/km
07550465
4 x 50,0 mm²
0,41 mm
32,2 mm
2037,3 kg/km
2443 kg/km
07550565
5 x 50,0 mm²
0,41 mm
35,5 mm
2531,9 kg/km
3007 kg/km
07550164
1 x 35,0 mm²
0,41 mm
15,5 mm
421,8 kg/km
467 kg/km
07550165
1 x 50,0 mm²
0,41 mm
17,3 mm
577,9 kg/km
646 kg/km
07550166
1 x 70,0 mm²
0,41 mm
19,8 mm
784 kg/km
862 kg/km
07550167
1 x 95,0 mm²
0,51 mm
23,1 mm
1051,5 kg/km
1179 kg/km
07550168
1 x 120,0 mm²
0,51 mm
24,6 mm
1318,2 kg/km
1420 kg/km
07550169
1 x 150,0 mm²
0,51 mm
27 mm
1611 kg/km
1748 kg/km
07550170
1 x 185,0 mm²
0,51 mm
29 mm
1952,1 kg/km
2077 kg/km
07550171
1 x 240,0 mm²
0,51 mm
34,3 mm
2493,2 kg/km
2805 kg/km
07550172
1 x 300,0 mm²
0,51 mm
37,5 mm
3077,6 kg/km
3445 kg/km

Other dimensions and colours are possible on request.
