SAB S 745 - Exploration

continuously flexible control cable, robust and oil resistant

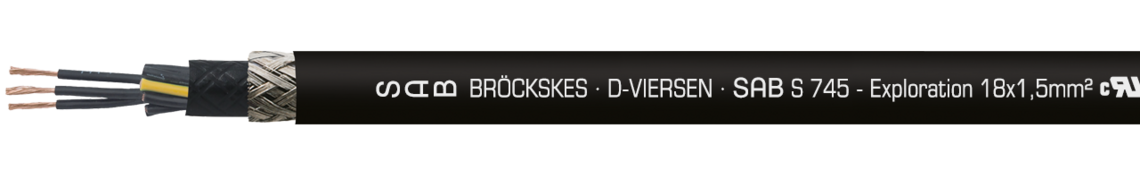

Marking for SAB S 745 - Exploration 07451815: SAB BRÖCKSKES · D-VIERSEN · SAB S 745 - Exploration 18x1,5mm² cULus AWM Style 21233 80°C 1000V AWM I/II A/B 80°C 1000V FT1 FT2  0745-0715  CE

Marking for SAB S 745 - Exploration 07451815: SAB BRÖCKSKES · D-VIERSEN · SAB S 745 - Exploration 18x1,5mm² cULus AWM Style 21233 80°C 1000V AWM I/II A/B 80°C 1000V FT1 FT2 0745-0715 CE

Application

Halogen-free, screened control cable for continuous flexible use in cable chains in rough environments for example drilling equipment or wet areas of machine tools and production lines. Appropriate for outdoor and indoor areas.

Outstanding features

  • UL/cUL recognized
  • extremely large temperature range
  • small outer diameter
  • small cable weight
  • long travels possible
  • very good EMC characteristics

Additional information

Hybrid cable on request!

Construction

Conductor

bare copper strands

acc. to IEC 60228, VDE 0295, class 6

Insulation

SABIX®

Colour code

cores black cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire

Inner sheath:

SABIX® (only for multi-core cables)

Screen

tinned copper braiding

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

bare copper strands

acc. to IEC 60228, VDE 0295, class 6

Insulation

SABIX®

Colour code

cores black cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire

Inner sheath:

SABIX® (only for multi-core cables)

Screen

tinned copper braiding

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/cUL

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 10 x d

Temperature range

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application*: -45/+90 °C

UL/cUL: up to +80 °C



*protected installation

Cold resistance

-50°C acc. to DIN EN 60811-506

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to

IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1 FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

MUD resistance

very good - acc. to IEC 60092-360, IEC 61892-4, NEK TS 606

Sunlight resistance

acc. to HD 605

Ozone resistance

acc. to DIN EN 50396

Salt water resistance

acc. to UL 1309

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/cUL

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 10 x d

Temperature range

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application*: -45/+90 °C

UL/cUL: up to +80 °C



*protected installation

Cold resistance

-50°C acc. to DIN EN 60811-506

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to

IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1 FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

MUD resistance

very good - acc. to IEC 60092-360, IEC 61892-4, NEK TS 606

Sunlight resistance

acc. to HD 605

Ozone resistance

acc. to DIN EN 50396

Salt water resistance

acc. to UL 1309

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L074503153 x 1,50 mm²0,16 mm7,8 mm66,8 kg/km97 kg/km Send inquiry
L074505155 x 1,50 mm²0,16 mm9,1 mm96,1 kg/km136 kg/km Send inquiry
L0745181518 x 1,50 mm²0,16 mm15,5 mm287,9 kg/km402 kg/km Send inquiry
L0745251525 x 1,50 mm²0,16 mm19 mm469,8 kg/km608 kg/km Send inquiry
L074503253 x 2,50 mm²0,16 mm10,1 mm102,3 kg/km157 kg/km Send inquiry
L074505255 x 2,50 mm²0,16 mm11,3 mm171 kg/km233 kg/km Send inquiry
L0745182518 x 2,50 mm²0,16 mm26,2 mm542,7 kg/km702 kg/km Send inquiry
L0745252525 x 2,50 mm²0,16 mm24,9 mm744,7 kg/km989 kg/km Send inquiry
L074504404 x 4,00 mm²0,16 mm12,5 mm202,3 kg/km271 kg/km Send inquiry
L074501601 x 6,00 mm²0,21 mm6,4 mm75,2 kg/km88 kg/km Send inquiry
L074504604 x 6,00 mm²0,21 mm15,3 mm327,9 kg/km423 kg/km Send inquiry
L074501611 x 10,0 mm²0,21 mm7,4 mm117,3 kg/km135 kg/km Send inquiry
L074501621 x 16,0 mm²0,21 mm8,6 mm179,8 kg/km198 kg/km Send inquiry
L074504624 x 16,0 mm²0,21 mm22,3 mm743 kg/km977 kg/km Send inquiry
L074501631 x 25,0 mm²0,21 mm10,6 mm287,6 kg/km304 kg/km Send inquiry
L074501651 x 50,0 mm²0,31 mm14,7 mm576,9 kg/km605 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L07450315
3 x 1,50 mm²
0,16 mm
7,8 mm
66,8 kg/km
97 kg/km
L07450515
5 x 1,50 mm²
0,16 mm
9,1 mm
96,1 kg/km
136 kg/km
L07451815
18 x 1,50 mm²
0,16 mm
15,5 mm
287,9 kg/km
402 kg/km
L07452515
25 x 1,50 mm²
0,16 mm
19 mm
469,8 kg/km
608 kg/km
L07450325
3 x 2,50 mm²
0,16 mm
10,1 mm
102,3 kg/km
157 kg/km
L07450525
5 x 2,50 mm²
0,16 mm
11,3 mm
171 kg/km
233 kg/km
L07451825
18 x 2,50 mm²
0,16 mm
26,2 mm
542,7 kg/km
702 kg/km
L07452525
25 x 2,50 mm²
0,16 mm
24,9 mm
744,7 kg/km
989 kg/km
L07450440
4 x 4,00 mm²
0,16 mm
12,5 mm
202,3 kg/km
271 kg/km
L07450160
1 x 6,00 mm²
0,21 mm
6,4 mm
75,2 kg/km
88 kg/km
L07450460
4 x 6,00 mm²
0,21 mm
15,3 mm
327,9 kg/km
423 kg/km
L07450161
1 x 10,0 mm²
0,21 mm
7,4 mm
117,3 kg/km
135 kg/km
L07450162
1 x 16,0 mm²
0,21 mm
8,6 mm
179,8 kg/km
198 kg/km
L07450462
4 x 16,0 mm²
0,21 mm
22,3 mm
743 kg/km
977 kg/km
L07450163
1 x 25,0 mm²
0,21 mm
10,6 mm
287,6 kg/km
304 kg/km
L07450165
1 x 50,0 mm²
0,31 mm
14,7 mm
576,9 kg/km
605 kg/km

Other dimensions and colours are possible on request.

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
