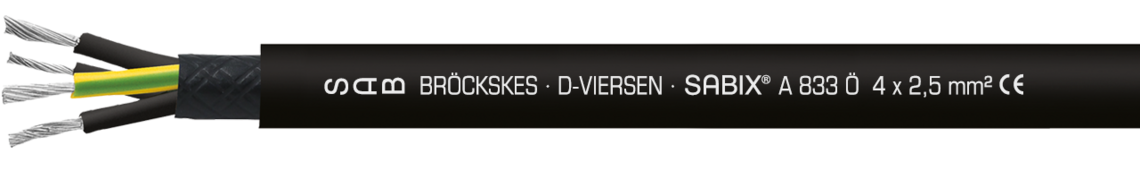

SABIX® A 883 Ö
Twisting and torsion connection cable
Application
SABIX® A 883 Ö is a twisting an torsion connection cable. It is recommended for use in rail vehicles, for instance, bogies and boxes. The cable is also possible without earth wire. Moreover, it is especially resistant against torsion and rotary motions.
Outstanding features
- Weather resistant
- UV & Ozone resistant
- Fire performance: flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2
- Oil resistant
Additional information
- for the use in rail vehicles, e. g. bogies and boxes
- also possible without earth wire
Construction
| Conductor | tinned copper strands acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | TPE |
| Colour code | black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Stranding | in layers |
| Inner sheath | SABIX® |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Sheath colour | black (RAL 9005) |
tinned copper strands acc. to IEC 60228,
VDE 0295, class 6
TPE
black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
in layers
SABIX®
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | core/core: 2000 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d |
| Temperature range | fixed laying: -50/+85°C flexible application: -40/+85°C |
| Torsion angle | +/- 15° |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing, acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| UV resistance | good |
| Ozone resistance | good |
| Oil resistance | very good - PUR, TMPU acc. to EN 50363-10-2 + DIN VDE 0207-363-10-2 |
| Weather resistance | good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
core/core: 2000 V
fixed laying: 4 x d
flexible application: 6 x d
fixed laying: -50/+85°C
flexible application: -40/+85°C
+/- 15°
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing, acc. to IEC 60332-1-2 + VDE 0482-332-1-2
good
good
very good - PUR, TMPU acc. to EN 50363-10-2 + DIN VDE 0207-363-10-2
good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L08830215 | 2 x 1,50 mm² | 0,16 mm | 8,1 mm | 28,8 kg/km | 92 kg/km | Send inquiry |
| L08830315 | 3 x 1,50 mm² | 0,16 mm | 8,4 mm | 43,2 kg/km | 107 kg/km | Send inquiry |
| L08830415 | 4 x 1,50 mm² | 0,16 mm | 9 mm | 57,6 kg/km | 128 kg/km | Send inquiry |
| L08830715 | 7 x 1,50 mm² | 0,16 mm | 10,4 mm | 100,8 kg/km | 189 kg/km | Send inquiry |
| L08831815 | 18 x 1,50 mm² | 0,16 mm | 15,2 mm | 259,2 kg/km | 417 kg/km | Send inquiry |
| L08830325 | 3 x 2,50 mm² | 0,16 mm | 9,7 mm | 75,5 kg/km | 158 kg/km | Send inquiry |
| L08830425 | 4 x 2,50 mm² | 0,16 mm | 10,5 mm | 100,6 kg/km | 192 kg/km | Send inquiry |
| L08830525 | 5 x 2,50 mm² | 0,16 mm | 11,5 mm | 125,8 kg/km | 233 kg/km | Send inquiry |
| L08830725 | 7 x 2,50 mm² | 0,16 mm | 12,2 mm | 176,1 kg/km | 291 kg/km | Send inquiry |
| L08830540 | 5 x 4,00 mm² | 0,16 mm | 13,6 mm | 192 kg/km | 335 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
