SABIX® Lift ST

Lift control cable with steel center as suspension unit

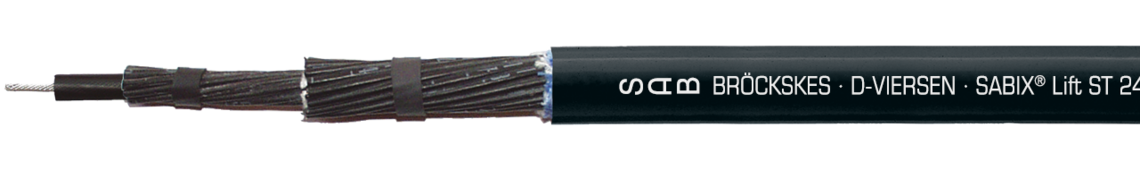

Marking for SABIX Lift ST 53912410: SAB BRÖCKSKES · D-VIERSEN · SABIX Lift ST 24 x 1,0 mm² CE

Download data sheet for SABIX® Lift ST

Questions about our products?

Application

SABIX® Lift ST is a halogen-free lift cable with steel center as suspension unit. This control cable gets used whenever there are highest safety requirements, especially in public buildings and institutions as, for example, department stores, hospitals, railway, and airport institutions, etc.

Outstanding features

halogen-free
highest hanging lengths
long service life
flame retardant and self-extinguishing

Additional information

Possible on request!

with total copper braiding
with different conductor and sheath colours

Construction

Conductor	bare copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 6
Insulation	special SABIX®
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire
Strain relief	steel rope in the center
Stranding	steel rope in centre, optimized twisting of conductors in layers
Wrapping	non-woven tape on each layer with overlap wrapping
Torsion protecting	special braid
Sheath material	thermoplastic special elastomer
Sheath colour	black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228,

EN 60228, VDE 0295, class 6

Insulation

special SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire

Strain relief

steel rope in the center

Stranding

steel rope in centre, optimized twisting of conductors in layers

Wrapping

non-woven tape on each layer with overlap wrapping

Torsion protecting

special braid

Sheath material

thermoplastic special elastomer

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	conductor/conductor: 2000 V
Min. bending radius	15 x d
Temperature range	fixed laying: -40/+90°C flexible application: -30/+90°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance	no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“
Suspended height	up to 200 m
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

conductor/conductor: 2000 V

Min. bending radius

15 x d

Temperature range

fixed laying: -40/+90°C

flexible application: -30/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

Suspended height

up to 200 m

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	no. of cores x cross section	medium outer-ø	copper figure	cable weight ca.	ohmic resistance at 20°C max.
53910510	5 x 1,00 mm²	8,7 mm	48 kg/km	115 kg/km	19,5 Ω/km	Send inquiry
53910710	7 x 1,00 mm²	9,8 mm	67,2 kg/km	153 kg/km	19,5 Ω/km	Send inquiry
53910910	9 x 1,00 mm²	11,5 mm	86,4 kg/km	246 kg/km	19,5 Ω/km	Send inquiry
53911210	12 x 1,00 mm²	14 mm	115,2 kg/km	338 kg/km	19,5 Ω/km	Send inquiry
53911810	18 x 1,00 mm²	16,6 mm	172,8 kg/km	415 kg/km	19,5 Ω/km	Send inquiry
53912410	24 x 1,00 mm²	16,8 mm	230,4 kg/km	494 kg/km	19,5 Ω/km	Send inquiry
53913010	30 x 1,00 mm²	19,8 mm	288 kg/km	673 kg/km	19,5 Ω/km	Send inquiry

item no.

no. of cores x
cross section

medium outer-ø

copper figure

cable weight ca.

ohmic resistance
at 20°C max.

53910510

5 x 1,00 mm²

8,7 mm

48 kg/km

115 kg/km

19,5 Ω/km

Send inquiry

53910710

7 x 1,00 mm²

9,8 mm

67,2 kg/km

153 kg/km

19,5 Ω/km

Send inquiry

53910910

9 x 1,00 mm²

11,5 mm

86,4 kg/km

246 kg/km

19,5 Ω/km

Send inquiry

53911210

12 x 1,00 mm²

14 mm

115,2 kg/km

338 kg/km

19,5 Ω/km

Send inquiry

53911810

18 x 1,00 mm²

16,6 mm

172,8 kg/km

415 kg/km

19,5 Ω/km

Send inquiry

53912410

24 x 1,00 mm²

16,8 mm

230,4 kg/km

494 kg/km

19,5 Ω/km

Send inquiry

53913010

30 x 1,00 mm²

19,8 mm

288 kg/km

673 kg/km

19,5 Ω/km

Send inquiry

Other dimensions and colours are possible on request.
