SABIX® Lift

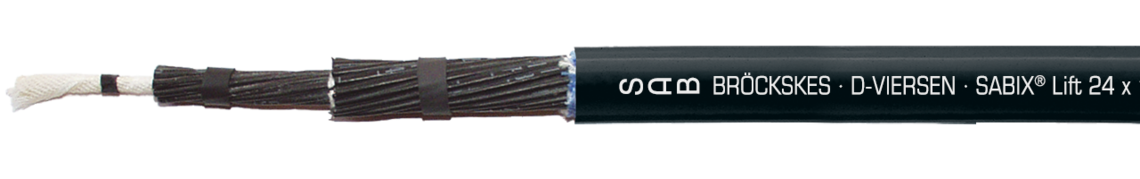

Lift control cable with sisal center as suspension unit

Marking for SABIX Lift 53902410: SAB BRÖCKSKES · D-VIERSEN · SABIX Lift 24 x 1,0 mm² CE

Marking for SABIX Lift 53902410: SAB BRÖCKSKES · D-VIERSEN · SABIX Lift 24 x 1,0 mm² CE

Application

SABIX® Lift is a halogen-free lift control cable with sisal cord as suspension unit. It gets used whenever there are highest safety requirements, especially in public buildings and institutions as, for example, department stores, hospitals, railway, and airport institutions, etc.

Outstanding features

  • halogen-free
  • long service life
  • elevated economic efficiency
  • flame retardant and self-extinguishing

Additional information

Possible on request!

  • with total copper braiding
  • with different conductor and sheath colours

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

Spezial SABIX®

Farbcodierung

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire

Strain relief

sisal cord

Stranding

sisal cord as core, optimized twisting of the conductors in layers

Wrapping

non-woven tape on each layer with overlap wrapping

Torsion protecting

special braid

Sheath material

thermoplastic special elastome

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

Spezial SABIX®

Farbcodierung

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire

Strain relief

sisal cord

Stranding

sisal cord as core, optimized twisting of the conductors in layers

Wrapping

non-woven tape on each layer with overlap wrapping

Torsion protecting

special braid

Sheath material

thermoplastic special elastome

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

15 x d

Temperature range

fixed laying: -40/+90°C

flexible application: -30/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

Suspended height

up to 60 m

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

15 x d

Temperature range

fixed laying: -40/+90°C

flexible application: -30/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

Suspended height

up to 60 m

Dimensions

item no. no. of cores x cross section medium outer-ø copper figure cable weight ca. ohmic resistance at 20°C max.
539007107 x 1,00 mm²11,2 mm67,2 kg/km160 kg/km19,5 Ω/km Send inquiry
539009109 x 1,00 mm²12,4 mm86,4 kg/km199 kg/km19,5 Ω/km Send inquiry
5390121012 x 1,00 mm²14,4 mm115,2 kg/km261 kg/km19,5 Ω/km Send inquiry
5390181018 x 1,00 mm²19,9 mm172,8 kg/km421 kg/km19,5 Ω/km Send inquiry
5390241024 x 1,00 mm²19,9 mm230,4 kg/km491 kg/km19,5 Ω/km Send inquiry
5390301030 x 1,00 mm²20,9 mm288 kg/km581 kg/km19,5 Ω/km Send inquiry
item no.
no. of cores x cross section
medium outer-ø
copper figure
cable weight ca.
ohmic resistance at 20°C max.
53900710
7 x 1,00 mm²
11,2 mm
67,2 kg/km
160 kg/km
19,5 Ω/km
53900910
9 x 1,00 mm²
12,4 mm
86,4 kg/km
199 kg/km
19,5 Ω/km
53901210
12 x 1,00 mm²
14,4 mm
115,2 kg/km
261 kg/km
19,5 Ω/km
53901810
18 x 1,00 mm²
19,9 mm
172,8 kg/km
421 kg/km
19,5 Ω/km
53902410
24 x 1,00 mm²
19,9 mm
230,4 kg/km
491 kg/km
19,5 Ω/km
53903010
30 x 1,00 mm²
20,9 mm
288 kg/km
581 kg/km
19,5 Ω/km

Other dimensions and colours are possible on request.
