1-channel extension type K, J, N and T with FEP-insulated thermocouple cable and miniature plug / miniature socket

Application

1-Channel Thermocouple Extension Cable with FEP Insulation and Miniature Plug

Optimize your industrial temperature measurement with our 1-channel thermocouple extension cable, compatible with thermocouple types K, J, N, and T. Designed for ambient temperatures up to +180 °C, this cable features high-quality FEP insulation and a shielded construction, ensuring precise and reliable signal transmission even over long distances.

Ideal for test benches, automotive development, and industrial applications, this robust extension cable offers easy connectivity via a miniature plug and coupling. It is available in standard lengths from 1,000 mm to 10.000 mm, with custom lengths available on request.

Outstanding features

  • easy handling and quick installation
  • mechanically robust and durable
  • space-saving design
  • temperature resistant up to +180 °C
  • variable cable lengths

Cable Data

Connection cable

thermocouple cable 2 x 0,22 mm²

Insulation

FEP

Screen

tinned copper braiding

Outer sheath

FEP

Diameter

2,7 mm

Temperature range

-25°C/+180°C

Connection cable

thermocouple cable 2 x 0,22 mm²

Insulation

FEP

Screen

tinned copper braiding

Outer sheath

FEP

Diameter

2,7 mm

Temperature range

-25°C/+180°C

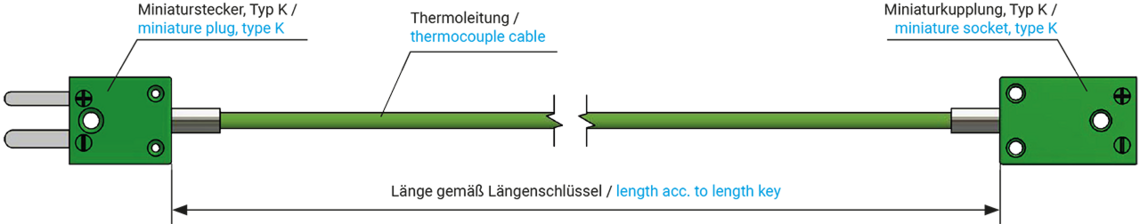

Connector

Side 1

miniature plug (screwable)

Side 2

miniature socket (screwable)

Side 1

miniature plug (screwable)

Side 2

miniature socket (screwable)

Configuration Example

item no. Type Cable length
S0435-4039-00100type K1000 mm Send inquiry
S0435-4039-00200type K2000 mm Send inquiry
S0435-4039-00300type K3000 mm Send inquiry
S0435-4039-00500type K5000 mm Send inquiry
S0435-4039-01000type K10000 mm Send inquiry
S0435-40XX-01000type J10000 mm Send inquiry
S0435-4044-00100type T1000 mm Send inquiry
S0435-4044-00200type T2000 mm Send inquiry
S0435-4044-00300type T3000 mm Send inquiry
S0435-4044-00500type T5000 mm Send inquiry
S0435-4044-01000type T10000 mm Send inquiry
S0435-40XX-00100type J1000 mm Send inquiry
S0435-40XX-00200type J2000 mm Send inquiry
S0435-40XX-00300type J3000 mm Send inquiry
S0435-40XX-00500type J5000 mm Send inquiry
item no.
Type
Cable length
S0435-4039-00100
type K
1000 mm
S0435-4039-00200
type K
2000 mm
S0435-4039-00300
type K
3000 mm
S0435-4039-00500
type K
5000 mm
S0435-4039-01000
type K
10000 mm
S0435-40XX-01000
type J
10000 mm
S0435-4044-00100
type T
1000 mm
S0435-4044-00200
type T
2000 mm
S0435-4044-00300
type T
3000 mm
S0435-4044-00500
type T
5000 mm
S0435-4044-01000
type T
10000 mm
S0435-40XX-00100
type J
1000 mm
S0435-40XX-00200
type J
2000 mm
S0435-40XX-00300
type J
3000 mm
S0435-40XX-00500
type J
5000 mm

Other lengths available on request.
