16 channels with FEP-insulated cable and miniature plug /miniature socket
Application

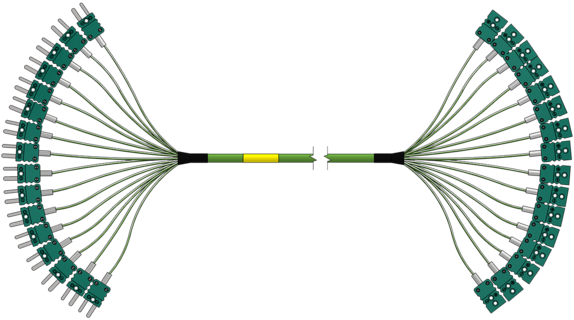

16-Channel Thermocouple Extension Cable with FEP Insulation and Miniature Connectors
Ensure precise multi-channel temperature measurement with our 16-channel thermocouple extension cable, featuring high-quality FEP insulation and copper shielding. Designed for a temperature range of -25 °C to +180 °C, this cable is ideal for test benches, automotive development, and industrial applications requiring reliable multi-channel operation.
Equipped with screw-type miniature plugs and couplings, it provides secure, low-loss connections that remain mechanically robust even with frequent plugging and unplugging. Its compact design and range of length options allow for flexible integration into complex measurement systems.
Outstanding features
- Easy handling and quick installation
- Mechanically robust and durable
- Space-saving design
- Temperature resistant up to +180 °C
- Variable cable lengths
Cable Data
| Connection cable | Thermocouple Wire 16 x 2 x 0,22 mm² |
|---|---|
| Insulation | FEP |
| Screen | Braided tinned copper wire |
| Outer steath | FEP |
| Diameter | 6,9 mm |
| Temperature range | -25°C/+180°C |
Thermocouple Wire 16 x 2 x 0,22 mm²
FEP
Braided tinned copper wire
FEP
6,9 mm
-25°C/+180°C
Connector
| Side 1 | Miniature plug (screwable) |
|---|---|
| Side 2 | Miniature socket (screwable) |
Miniature plug (screwable)
Miniature socket (screwable)
Configuration Example
| item no. | Type | Cable length | |
|---|---|---|---|
| S0435-4041-00100 | Type K | 1000 mm | Send inquiry |
| S0435-4041-00200 | Type K | 2000 mm | Send inquiry |
| S0435-4041-00300 | Type K | 3000 mm | Send inquiry |
| S0435-4041-00500 | Type K | 5000 mm | Send inquiry |
| S0435-4041-01000 | Type K | 10000 mm | Send inquiry |
Other lengths available on request.
