16 channels with FEP-insulated thermocouple cable and Lemo plug / socket FFA and PCA
Application

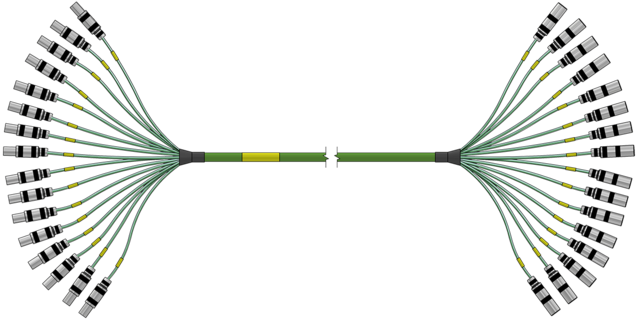

16-Channel Thermocouple Extension Cable with FEP Insulation and Lemo Connectors (FFA/PCA)
Optimize multi-channel temperature measurement with our 16-channel thermocouple extension cable featuring FEP insulation and copper shielding. Designed for a temperature range of -25 °C to +180 °C, this cable is perfect for test benches, automotive development, and industrial measurement applications requiring reliable and precise multi-channel operation.
Equipped with durable Lemo connectors (FFA/PCA), it ensures secure, low-loss signal transmission even with frequent plugging and unplugging. Its compact design and flexible length options allow for seamless integration into complex measurement systems.
Outstanding features
- Easy handling and quick installation
- Mechanically robust and durable
- Space-saving design
- Temperature resistant up to +180 °C
- Variable cable lengths
Cable Data
| Connection cable | Thermocouple Wire 16 x 2 x 0,22 mm² |
|---|---|
| Insulation | FEP |
| Screen | Braided tinned copper wire |
| Outer sheath | FEP |
| Diameter | 6,9 mm |
| Temperature range | -25°C/+180°C |
Thermocouple Wire 16 x 2 x 0,22 mm²
FEP
Braided tinned copper wire
FEP
6,9 mm
-25°C/+180°C
Connector
| Side 1 | Lemo cable connector, 2-pole (16x) |
|---|---|
| Side 2 | Lemo cable socket, 2-pole (16x) |
Lemo cable connector, 2-pole (16x)
Lemo cable socket, 2-pole (16x)
Configuration Example
| item no. | Type | Cable length | |
|---|---|---|---|
| S0435-4043-00300 | Type K | 3000 mm | Send inquiry |
| S0435-4043-00500 | Type K | 5000 mm | Send inquiry |
| S0435-4043-01000 | Type K | 10000 mm | Send inquiry |
Other lengths available on request.
