8-channel thermocouple extension with Lemo connectors FFA / PCA
Application

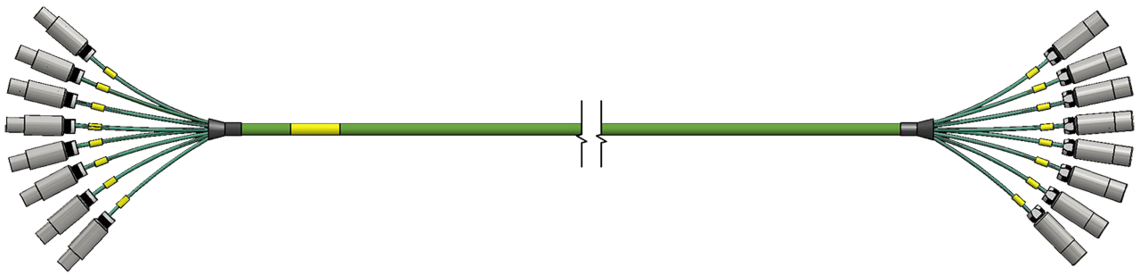

8-Channel Thermocouple Extension Cable with FEP Insulation and Lemo Connectors (FFA/PCA)
Achieve robust and reliable multi-channel temperature measurement with our 8-channel thermocouple extension cable featuring durable Lemo connectors (FFA/PCA). Built with FEP-insulated, shielded copper wiring, this cable supports a temperature range up to +180 °C and is engineered for high-frequency plug/unplug operations, ensuring long-term mechanical and electrical robustness in multi-channel setups.
This cable is specifically designed for applications where frequent reconnections and high reliability are critical, such as laboratories, test benches, and automotive development. Its compact, robust construction ensures secure, low-loss signal transmission, and it is available in standard and custom lengths to suit your measurement system requirements.
Outstanding features
- Easy handling and quick installation
- Mechanically robust and durable
- Space-saving design
- Temperature resistant up to +180 °C
- Variable cable lengths
Cable Data
| Connection cable | Thermocouple Wire 8 x 2 x 0,22 mm² |
|---|---|
| Insulation | FEP |
| Screen | Braided tinned copper wire |
| Outer sheath | FEP |
| Diameter | 6,9 mm |
| Temperature range | -25°C/+180°C |
Thermocouple Wire 8 x 2 x 0,22 mm²
FEP
Braided tinned copper wire
FEP
6,9 mm
-25°C/+180°C

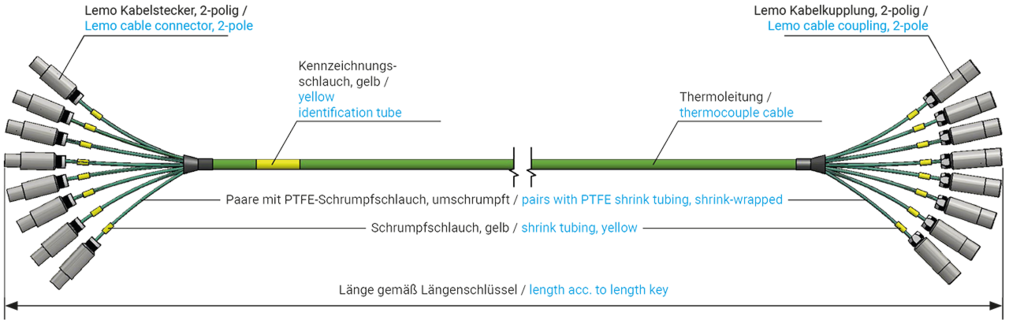

Connector
| Side 1 | Lemo cable connector, 2-pole (8x) |
|---|---|
| Side 2 | Lemo cable socket, 2-pole (8x) |
Lemo cable connector, 2-pole (8x)
Lemo cable socket, 2-pole (8x)
Configuration Example
| item no. | Type | Cable length | |
|---|---|---|---|
| S0435-4042-00300 | Type K | 3000 mm | Send inquiry |
| S0435-4042-00500 | Type K | 5000 mm | Send inquiry |
| S0435-4042-01000 | Type K | 10000 mm | Send inquiry |
Other lengths available on request.
