8 channels with FEP-insulated thermocouple cable and miniature plug / miniature socket
Application

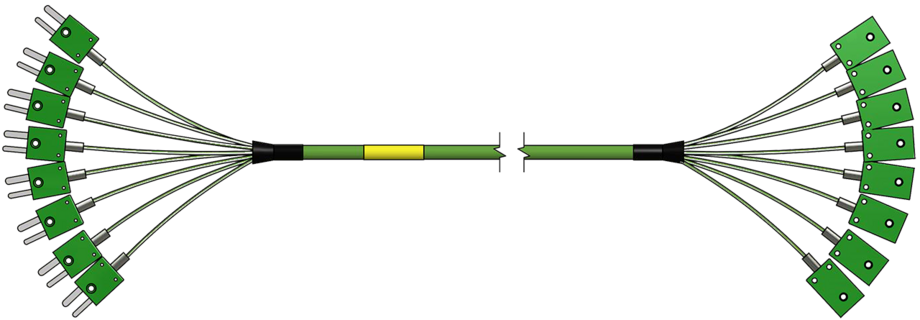

8-Channel Thermocouple Extension Cable with FEP Insulation and Modular Connectors
Expand your multi-channel temperature measurement capabilities with our 8-channel thermocouple extension cable, designed for precise signal transmission in test benches, automotive development, and industrial processes. Featuring FEP insulation and copper shielding, this cable offers reliable performance at temperatures up to +180 °C.
This 8-channel configuration provides a compact, space-saving design ideal for installations with limited room, while still delivering secure multi-channel connections. Equipped with modular connectors such as miniature plugs and couplings, it allows flexible integration into a wide range of measurement systems. Standard and custom lengths are available to suit your application needs.
Outstanding features
- Easy handling and quick installation
- Mechanically robust and durable
- Space-saving design
- Temperature resistant up to +180 °C
- Variable cable lengths
Cable Data
| Connection cable | Thermocouple Wire 8 x 2 x 0,22 mm² |
|---|---|
| Insulation | FEP |
| Screen | Braided tinned copper wire |
| Outer sheath | FEP |
| Diameter | 6,9 mm |
| Temperature range | -25°C/+180°C |
Thermocouple Wire 8 x 2 x 0,22 mm²
FEP
Braided tinned copper wire
FEP
6,9 mm
-25°C/+180°C
Connector
| Side 1 | Miniature plug (screwable) |
|---|---|
| Side 2 | Miniature socket (screwable) |
Miniature plug (screwable)
Miniature socket (screwable)
Configuration Example
| item no. | Type | Cable length | |
|---|---|---|---|
| S0435-4040-00100 | Type K | 1000 mm | Send inquiry |
| S0435-4040-00200 | Type K | 2000 mm | Send inquiry |
| S0435-4040-00300 | Type K | 3000 mm | Send inquiry |
| S0435-4040-00500 | Type K | 5000 mm | Send inquiry |
| S0435-4040-01000 | Type K | 10000 mm | Send inquiry |
Other lengths available on request.
